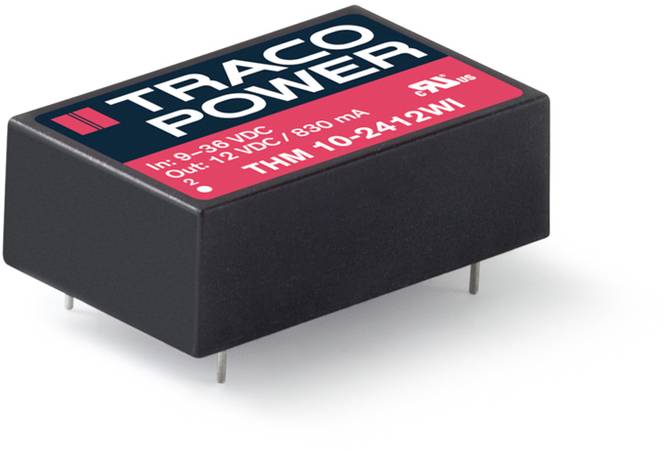

TracoPower THM 10-2412WI DC/DC converter (print) 24 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 63.86 / piece)
€ 638.60
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
THM 10-2412WI
- Nominal voltage
24 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
830 mA
- Output current (max.) - rounded
830 mA
- Efficiency (max.)
89 %
10 W
- Insulation voltage
5000 V AC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
75 °C
- Dim
(L x W x H) 31.8 x 20.3 x 14 mm
- Height
14 mm
- Length
31.8 mm
- Width
20.3 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Weight
14 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370964 TracoPower THM 10-2412WI DC/DC converter (print) 24 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370964 TracoPower THM 10-2412WI DC/DC converter (print) 24 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370964 TracoPower THM 10-2412WI DC/DC converter (print) 24 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370964 TracoPower THM 10-2412WI DC/DC converter (print) 24 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Description
4:1 input range, input/output insulation 5000 VAC for 250 VAC operating voltage, 2 x MOP medical approval according to IEC/EN 60601-1, 3rd edition, low leakage current, input filter according to EN 55022, class A.
