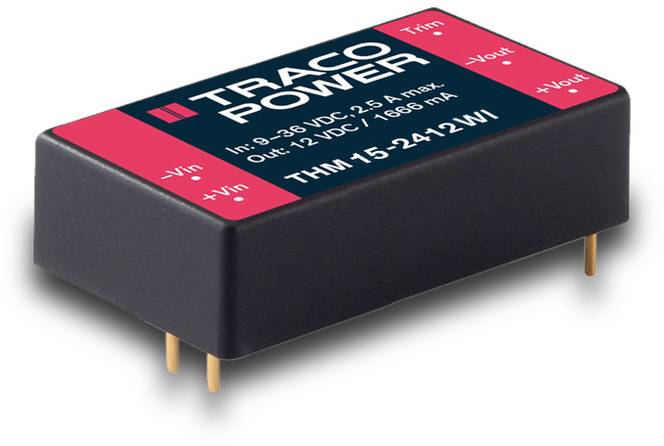

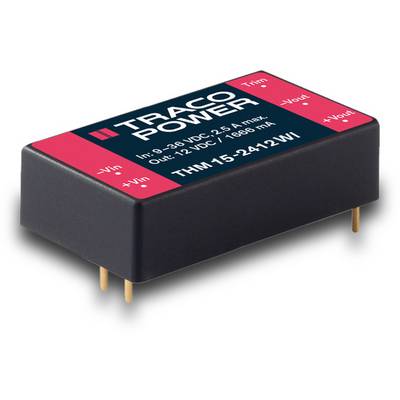

TracoPower THM 15-4821WI DC/DC converter (print) 48 V DC 1.5 A 15 W No. of outputs: 2 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 72.26 / piece)
€ 722.60
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
THM 15-4821WI
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
2 x
- Max. output current
1.5 A
- Output current (max.) - rounded
1.5 A
- Efficiency (max.)
86 %
15 W
- Insulation voltage
5000 V AC
- Enclosure
DIP 10 (1/8 brick)
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 40.6 x 25.4 x 15.8 mm
- Height
15.8 mm
- Length
40.6 mm
- Width
25.4 mm
- Output voltage (max.)
5 V DC
- Output voltage (min.)
-5 V DC
- Content
1 pc(s)
