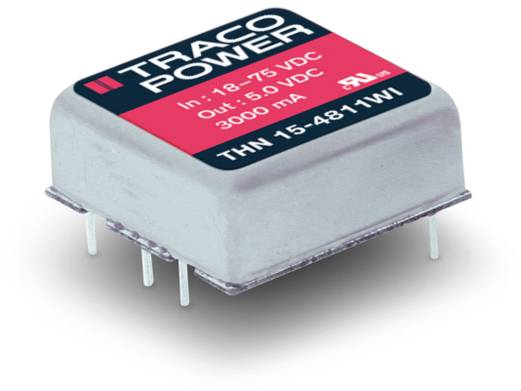

TracoPower THN 15-4811WI DC/DC converter (print) 48 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Ripple: 100 mV
- Product type
DC/DC converter (print)
- Type
THN 15-4811WI
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
3 A
- Output current (max.) - rounded
3 A
- Efficiency (max.)
86 %
15 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 25 x 25 x 10 mm
- Height
10 mm
- Length
25 mm
- Width
25 mm
- Content
1 pc(s)
15 W
- Output voltage
5 V DC
- Output current (details)
3000 mA
- Type
THN 15-4811WI
- Operating temperature
-40 - +85 °C
- Insulation voltage
1500 V DC
- Residual ripple
voltage:100 mV
Documents & Downloads
Datasheet
Datasheet 156555 TracoPower THN 15-4811WI DC/DC converter (print) 48 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 156555 TracoPower THN 15-4811WI DC/DC converter (print) 48 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 156555 TracoPower THN 15-4811WI DC/DC converter (print) 48 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Description
Wide input range, high degree of efficiency, short-circuit proof, adjustable output voltage, external on/off, industry-standard pins.
Hints
Approvals: UL, EN.
