TracoPower TIB 480-148 Rail mounted PSU (DIN) +48.0 V DC 10000 mA 480 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 268.07 / piece)
€ 268.07
plus VAT.
Only 1 Piece(s) available
Highlights & Details

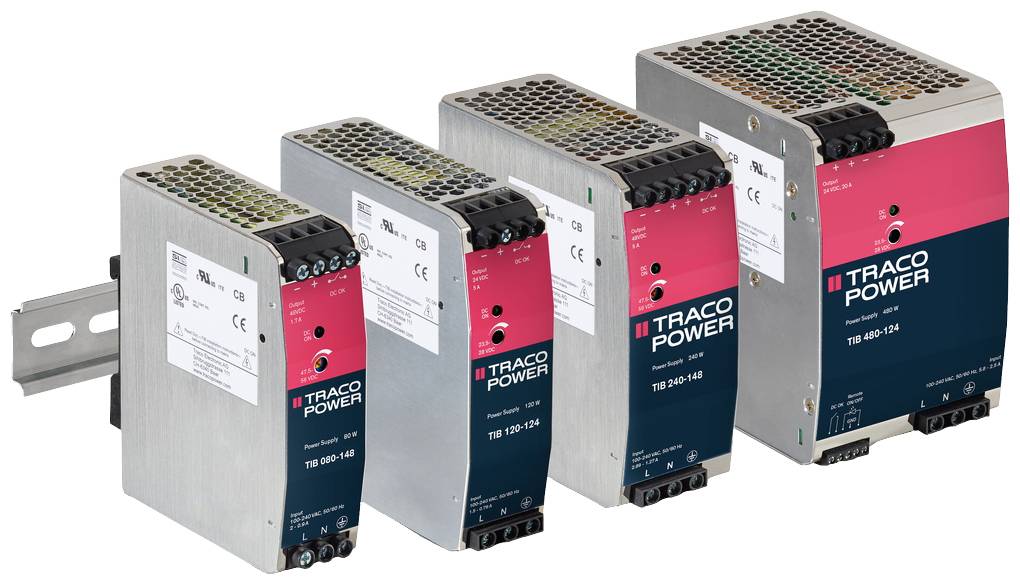

DIN rail power supply (DIN rail), TIB 480 series
- Slim design and energy-efficient design
- 100 % power boost for 4 seconds
- Active power factor correction
- Safe against feedback, short circuit and overload
- Adjustable output voltage:
- I/O INSULATION 4250 VDC
- Can also be mounted on the side for flat distribution cabinets
- This text is machine translated.
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
+48.0 V DC
- Inputs
1 x
- Input voltage
100 - 240 V AC
- Input voltage (max.)
264 V AC
- Max. output current
10000 mA
- Output current (max.) - rounded
10 A
480 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
+48.0 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 118.6 x 82.0 x 124.2 mm
- Weight
1018 g
- Output voltage (max.)
+56.0 V DC
- Output voltage (min.)
+47.0 V DC
- Operating temperature (max.)
70 °C
- Min. operating temperature (derating)
55 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
TIB 480-148
- Content
1 pc(s)
- PSU features
Adjustable voltage output
- Width
82.0 mm
- Height
124.2 mm
- Length
118.6 mm
- Max. temperature
70 °C
- Min. temperature
-40 °C
- Type
TIB 480-148
