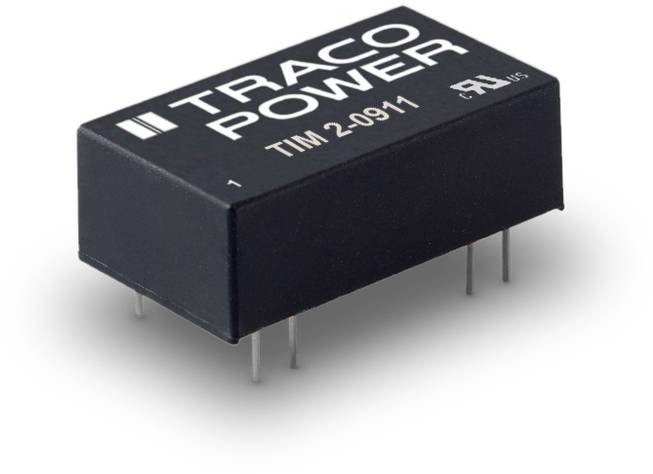

TracoPower TIM 2-0922 DC/DC converter (print) 3.3 V DC 83 mA 2 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 30.24
30
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 30.24 / piece)
€ 302.40
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TIM 2-0922
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
2 x
- Output voltages
3.3 V DC
- Max. output current
83 mA
- Output current (max.) - rounded
83 mA
- Efficiency (max.)
82 %
2 W
- Insulation voltage
5000 V AC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
95 °C
- Dim
(L x W x H) 24.30 x 14.40 x 10.20 mm
- Height
10.20 mm
- Length
24.30 mm
- Width
14.40 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V DC
-12 V DC
- Output voltage (min.)
12 V DC
-12 V DC
- Weight
7 g
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3372096 TracoPower TIM 2-0922 DC/DC converter (print) 3.3 V DC 83 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3372096 TracoPower TIM 2-0922 DC/DC converter (print) 3.3 V DC 83 mA 2 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3372096 TracoPower TIM 2-0922 DC/DC converter (print) 3.3 V DC 83 mA 2 W No. of outputs: 2 x Content 1 pc(s)
