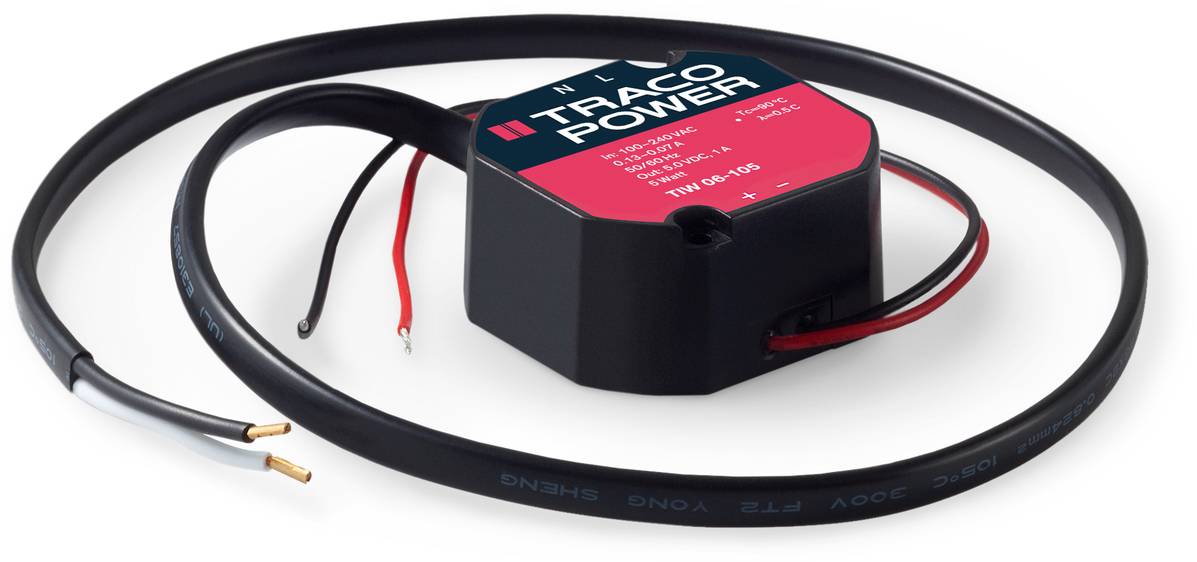

Buy TracoPower TIW 12-124 SMPSU 0.5 A 12 W 24 V DC 1 pc(s)

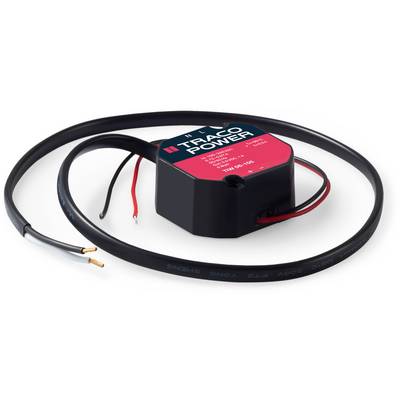

'TRACO Power Module with Cables, Type THN 20-2423. Electronic Component for Power Supply, Black Housing, Red Top Surface with White Specifications.'

Datasheet (PDF)

60 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€

Report legal concerns

Highlights & Details

Mounting power plug TIW 12-124S

IP67 dust- and waterproof
Wide-range input
Output 1: 24 V DC / 0.5 A
12 W Power
Synchronised
Input voltage range 93 - 264 V AC
Connection (components): Open end cable
Dimensions (W x H x D) 51 x 48 x 24 mm

Technical specifications

Max. output current: 0.5 A

Output current (max.) - rounded: 500 mA

Dim: (W x H x D) 51 x 48 x 24 mm

Output current 1: 0.5 A

Depth: 24 mm

Height: 48 mm

Width: 51 mm

Connection: Open end cable

Type: closed

Type: TIW 12-124

Input voltage (max.): 264 V AC

Min. input voltage: 93 V AC

Output voltage (max.): 24 V DC

No. of outputs: 1 x

: 12 W

: 12 W

Type: Synchronised

Connection: Strands

PFC: No

Input voltage: 93 - 264 V AC

Output voltage 1: 24 V DC

Weight: 80 g

Product type: SMPSU

Documents & Downloads

Datasheet

Datasheet 512636 TracoPower TIW 12-124 SMPSU 0.5 A 12 W 24 V DC 1 pc(s)

Warranty Terms

Warranty Terms 512636 TracoPower TIW 12-124 SMPSU 0.5 A 12 W 24 V DC 1 pc(s)

Description

Stabilised power supply unit with wire connection to input and output. Through the compact and encapsulated housing, the installation in flush-mounted sockets or the structure of surfaces, it is very easy. Ideal for building automation, security systems and control equipment.
