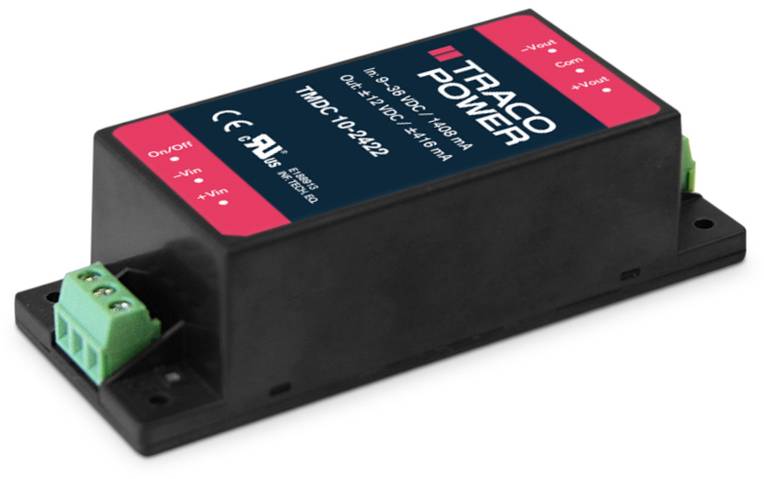

TracoPower TMDC 10-2425 DC/DC converter 208 mA 10 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 57.13 / piece)
€ 571.30
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter
- Type
TMDC 10-2425
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
2 x
- Max. output current
208 mA
- Output current (max.) - rounded
208 mA
- Efficiency (max.)
85 %
10 W
- Insulation voltage
3000 V DC
- Connection
Screw terminal
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
80 °C
- Dim
(L x W x H) 79 x 34 x 22 mm
- Height
22 mm
- Length
79 mm
- Width
34 mm
- RoHS-compliant
Yes
- Output voltage (max.)
24 V DC
-24 V DC
- Output voltage (min.)
24 V DC
-24 V DC
- Weight
65.80 g
- Content
1 pc(s)
- UKCA
yes
