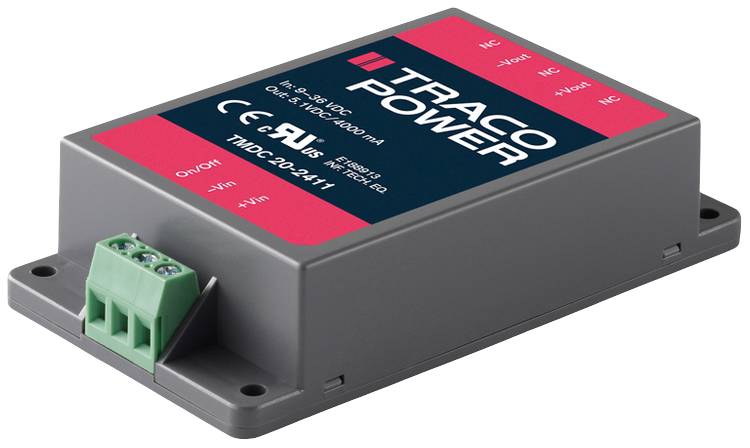

TracoPower TMDC 20-2415 DC/DC converter (module) 24 V DC 24 V DC 835 mA 20 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
DC/DC converter (module)
- Type
TMDC 20-2415
- Nominal voltage
24 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
24 V DC
- Max. output current
835 mA
- Output current (max.) - rounded
835 mA
- Efficiency (max.)
91 %
20 W
- Insulation voltage
2500 V DC
- Connection
Screw terminal
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
90 °C
- Dim
(L x W x H) 54 x 96 x 23.3 mm
- Height
23.3 mm
- Length
54 mm
- Width
96 mm
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Weight
107 g
- Content
1 pc(s)
- Type
TMDC20-2415
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1510803 TracoPower TMDC 20-2415 DC/DC converter (module) 24 V DC 24 V DC 835 mA 20 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 1510803 TracoPower TMDC 20-2415 DC/DC converter (module) 24 V DC 24 V DC 835 mA 20 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1510803 TracoPower TMDC 20-2415 DC/DC converter (module) 24 V DC 24 V DC 835 mA 20 W No. of outputs: 1 x Content 1 pc(s)
Description
Vollverkapseltes, flat plastic casing, connection and fixing through screw terminal, 4:1 input voltage range. E/A-insulation 2500 V/DC, input filter according to EN 55022, class A, external on/off.
