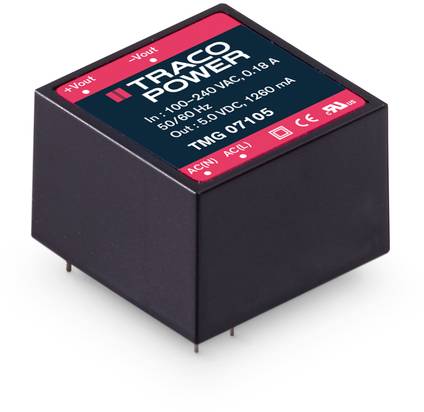

TracoPower TMG 07105 AC/DC PSU (print) 5 V DC 1.26 A 6.3 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 32.76 / piece)
€ 327.60
plus VAT.
14-day return policy included
Highlights & Details
AC/DC PCB power supply TracoPower TMG 07105 5 V/DC 1260 mA 6.3 W
- Output 5 V DC / 1.26 A
- Power 6.3 W
- Solder pins
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
264 V AC
- Max. output current
1.26 A
- Output current (max.) - rounded
1.26 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 18.7 x 27.4 x 27.4 mm
- Output voltage (max.)
5 V DC
- Connection
Solder pins
6.3 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
45 °C
- Min. operating temperature (derating)
-40 °C
- Weight
26 g
- Width
27.4 mm
- Height
27.4 mm
- Length
18.7 mm
- Type
TMG 07105
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3371547 TracoPower TMG 07105 AC/DC PSU (print) 5 V DC 1.26 A 6.3 W
User & Safety Instructions
User & Safety Instructions 3371547 TracoPower TMG 07105 AC/DC PSU (print) 5 V DC 1.26 A 6.3 W
Warranty Terms
Warranty Terms 3371547 TracoPower TMG 07105 AC/DC PSU (print) 5 V DC 1.26 A 6.3 W
Description
Compact, fully cast power supplies with high packing density
PCB mounting using soldering pins
Input filter in accordance with EN 55022, class B
Safety standards according to IEC/EN/UL 60950-1
Short circuit and surge protection
This text is machine translated.
PCB mounting using soldering pins
Input filter in accordance with EN 55022, class B
Safety standards according to IEC/EN/UL 60950-1
Short circuit and surge protection
This text is machine translated.
