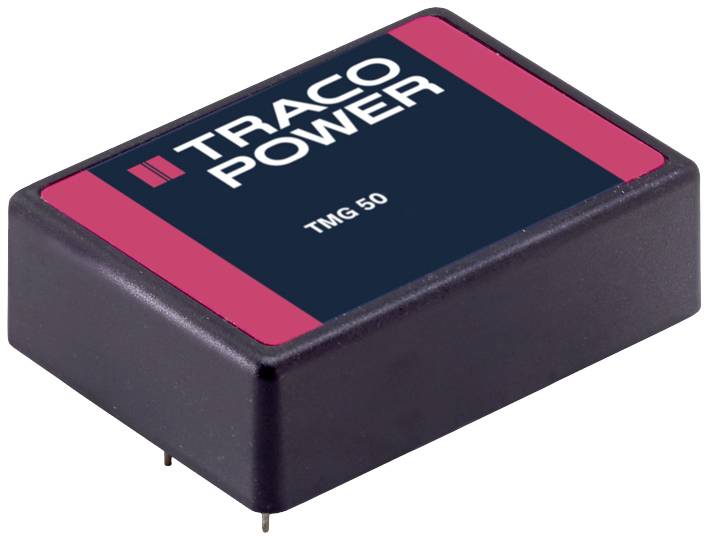

TracoPower TMG 50105 AC/DC PSU (print) 5 V DC 8 A 40 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 70.58 / piece)
€ 705.80
plus VAT.
Highlights & Details
AC/DC PCB power supply TracoPower TMG 50105 5 V/DC 8000 mA 40 W
- Output 5 V DC / 8 A
- Power 40 W
- Solder pins
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
264 V AC
- Max. output current
8 A
- Output current (max.) - rounded
8 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 21.8 x 54.1 x 74.1 mm
- Output voltage (max.)
5 V DC
- Connection
Solder pins
40 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
50 °C
- Min. operating temperature (derating)
-40 °C
- Weight
166 g
- Width
54.1 mm
- Height
74.1 mm
- Length
21.8 mm
- Type
TMG 50105
Documents & Downloads
Datasheet
Datasheet 3371559 TracoPower TMG 50105 AC/DC PSU (print) 5 V DC 8 A 40 W
User & Safety Instructions
User & Safety Instructions 3371559 TracoPower TMG 50105 AC/DC PSU (print) 5 V DC 8 A 40 W
Warranty Terms
Warranty Terms 3371559 TracoPower TMG 50105 AC/DC PSU (print) 5 V DC 8 A 40 W
Description
Compact, fully cast power supplies with high packing density
PCB mounting using soldering pins
Input filter in accordance with EN 55022, class B
Safety standards according to IEC/EN/UL 60950-1
Short circuit and surge protection
This text is machine translated.
PCB mounting using soldering pins
Input filter in accordance with EN 55022, class B
Safety standards according to IEC/EN/UL 60950-1
Short circuit and surge protection
This text is machine translated.
