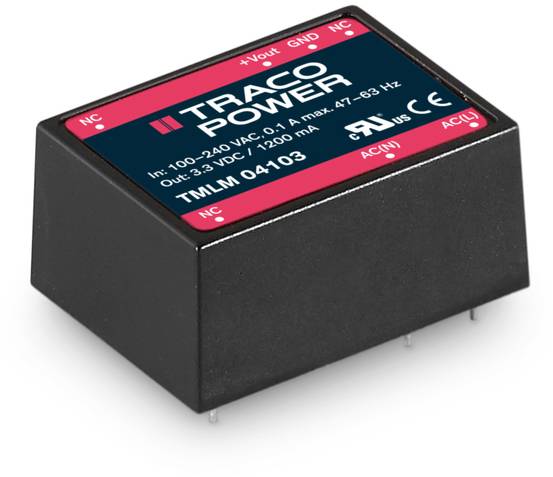

TracoPower TMLM 04103 AC/DC PSU (print) 3.3 V DC 1.2 A 4 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Only 3 Piece(s) available
Highlights & Details
TracoPower TMLM 04103 AC/DC PSU (print) 3.3 V DC 1.2 A 4 W
- Output 3.3 V DC / 1.2 A
- Power 4 W
- Solder pins
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
264 V AC
- Max. output current
1.2 A
- Output current (max.) - rounded
1.2 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 37 x 27 x 17 mm
- Output voltage (max.)
3.3 V DC
- Connection
Solder pins
4 W
- Input frequency
47 - 440 Hz
- Type
Soldering pins
- Output voltage 1
3.3 V
- Output current 1
1200 mA
- Operating temperature
-25 to +60 °C
- Type
Synchronised
- Width
27 mm
- Height
17 mm
- Length
37 mm
- Type
TMLM 04103
4 W
- Output current (details)
1200 mA
- Connection
Soldering pins
- Input voltage
90 - 264 V AC
Documents & Downloads
Datasheet
Datasheet 512611 TracoPower TMLM 04103 AC/DC PSU (print) 3.3 V DC 1.2 A 4 W
Datasheet 512611 TracoPower TMLM 04103 AC/DC PSU (print) 3.3 V DC 1.2 A 4 W
User & Safety Instructions
User & Safety Instructions 512611 TracoPower TMLM 04103 AC/DC PSU (print) 3.3 V DC 1.2 A 4 W
Warranty Terms
Warranty Terms 512611 TracoPower TMLM 04103 AC/DC PSU (print) 3.3 V DC 1.2 A 4 W
Description
AC/DC power supply modules of the TMLM series. Ultra-compact, fully cast switched-mode power supplies with the highest power density, which can be mounted directly on the circuit board. This makes these modules in an optimal solution for a variety of applications, where space is critical in the commercial and industrial electronics. International safety approvals, it is qualified for use worldwide. The structure in SMD technology and the high degree of efficiency guarantees a high degree of reliability of these switched-mode power supplies.
