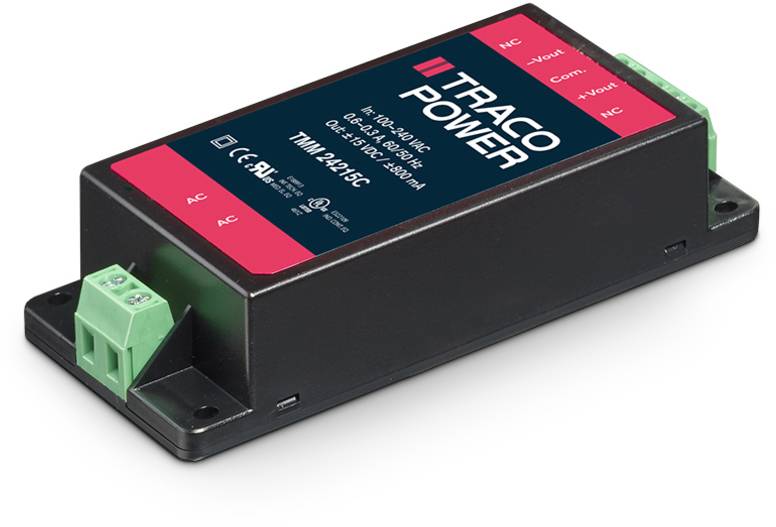

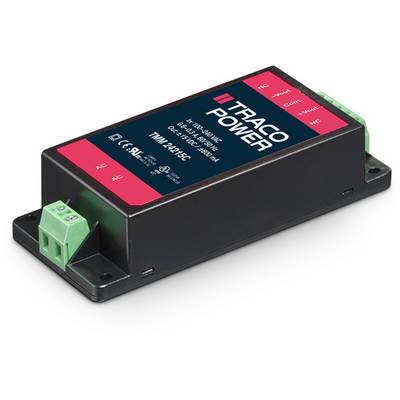

TracoPower TMM 24212C AC/DC PSU (print) 24 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 5
Total (€ 82.34 / piece)
€ 411.70
plus VAT.
14-day return policy included
Highlights & Details
AC/DC SW.-MOD. POWER SUPPLY, 24 W, ±12 V/±1.0 A
- Output /
- Power 24 W
- Screw terminal
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
264 V AC
- Min. input voltage
85 V AC
- Dim
(L x W x H) 96 x 54 x 23.3 mm
- Connection
Screw terminal
24 W
- Protection class
II
- No. of outputs
2 x
- Operating temperature (max.)
80 °C
- Max. operating temperature (derating)
90 °C
- Min. operating temperature (derating)
65 °C
- Operating temperature (min.)
-40 °C
- Weight
147 g
- PSU features
Surge protection
- Width
54 mm
- Height
23.3 mm
- Length
96 mm
- Type
TMM 24212C
Documents & Downloads
Datasheet
Datasheet 3370100 TracoPower TMM 24212C AC/DC PSU (print) 24 W
Datasheet 3370100 TracoPower TMM 24212C AC/DC PSU (print) 24 W
User & Safety Instructions
User & Safety Instructions 3370100 TracoPower TMM 24212C AC/DC PSU (print) 24 W
Warranty Terms
Warranty Terms 3370100 TracoPower TMM 24212C AC/DC PSU (print) 24 W
Description
The switching power supplies of the TMM 24 series offer ultra-compact, completely sealed modules with reinforced/double I/O insulation according to the latest safety standards 60601-3, 3rd edition for 2 x MOPP (Means Of Patient Protection). Due to their high degree of efficiency and the use of high-quality components, these modules can be used in a working temperature range from –40°C to +65°C, with a power reduction of 50% even up to +80°C. Due to their good EMC properties, they can be used not only in medical applications but also in demanding industrial and transport applications.
This text is machine translated.
This text is machine translated.
Scope of delivery
- AC/DC-switched power supply
