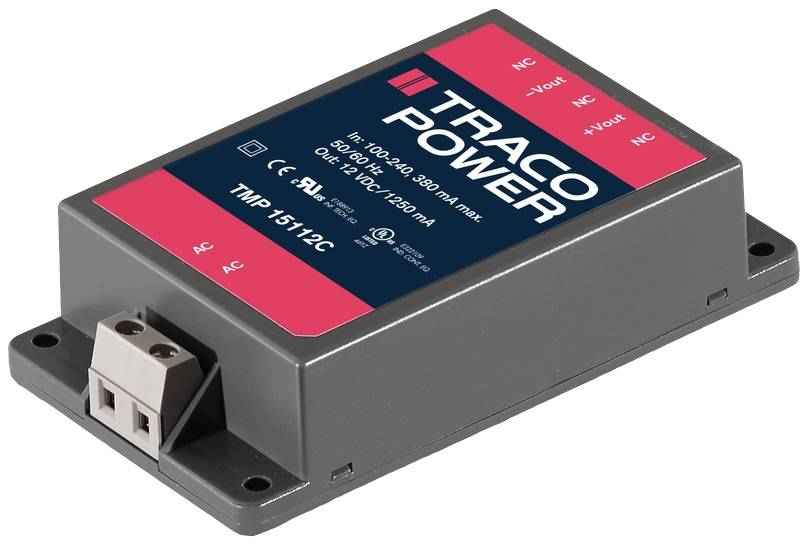

TracoPower TMP 15112C Power supply unit 12 V DC 1.25 A 15 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 5
Total (€ 50.41 / piece)
€ 252.05
plus VAT.
14-day return policy included
Highlights & Details
TracoPower TMP 15112C Power supply unit 12 V DC 1.25 A 15 W
- Ultra compact and flat
- AC- and DC-input
Technical specifications
- Product type
Power supply unit
- Input voltage (max.)
264 V AC
- Max. output current
1.25 A
- Output current (max.) - rounded
1.25 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 96 x 54 x 24 mm
- Output voltage (max.)
12 V DC
- Connection
Solder pins
15 W
- No. of outputs
1 x
- Type
closed
- Weight
162 g
- Type
Synchronised
- Width
54 mm
- Height
24 mm
- Length
96 mm
- Type
TMP 15112C
- Connection
Soldering pins
- Input voltage
90 - 264 V/AC/120 - 370 V DC
- Max. temperature
60 °C
- Min. temperature
-25 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3369932 TracoPower TMP 15112C Power supply unit 12 V DC 1.25 A 15 W
Datasheet 3369932 TracoPower TMP 15112C Power supply unit 12 V DC 1.25 A 15 W
User & Safety Instructions
User & Safety Instructions 3369932 TracoPower TMP 15112C Power supply unit 12 V DC 1.25 A 15 W
Warranty Terms
Warranty Terms 3369932 TracoPower TMP 15112C Power supply unit 12 V DC 1.25 A 15 W
Description
Shed power supply module for PCB mounting with solder pins for chassis mounting with screw terminals. The module is designed for AC and DC capable operation TMPM version with ultra-compact design.
Features
- Short-circuit and overload protection
- Power limitation at: > 120-180% Inorm with foldback
- Safety standards / approvals: cUL / UL 60950-1, IEC / EN 60950-1, CB-Report
- Operating temperature: -25 to +60 ºC, derating>50 °C
- Housing as of UL 94V-0
