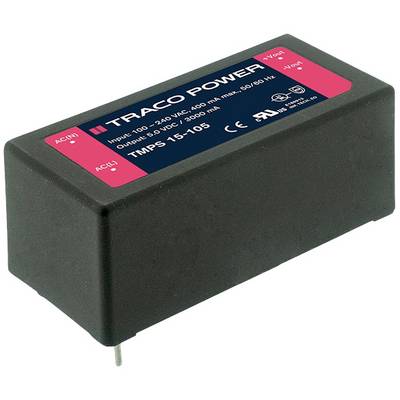

TracoPower TMPS 15-115 AC/DC PSU (print) 15 V DC 1.0 A 15 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 32.76 / piece)
€ 327.60
plus VAT.
14-day return policy included
Highlights & Details
AC/DC power supply, TMPS 15 series
- Output 15 V DC / 1.0 A
- Power 15 W
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
264 V AC
- Max. output current
1.0 A
- Output current (max.) - rounded
1 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 52.40 x 27.20 x 23.50 mm
- Output voltage (max.)
15 V DC
15 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-25 °C
- Weight
60 g
- Width
27.20 mm
- Height
23.50 mm
- Length
52.40 mm
- Type
TMPS 15-115
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3373003 TracoPower TMPS 15-115 AC/DC PSU (print) 15 V DC 1.0 A 15 W
User & Safety Instructions
User & Safety Instructions 3373003 TracoPower TMPS 15-115 AC/DC PSU (print) 15 V DC 1.0 A 15 W
Warranty Terms
Warranty Terms 3373003 TracoPower TMPS 15-115 AC/DC PSU (print) 15 V DC 1.0 A 15 W
Description
The TMPS 15 series is a completely enclosed switched-mode power supply suitable for applications in the household, industry and building automation sector. Because of its low no-load consumption (less than 100 mW) this series meets the European Union's ErP directive. All models are prepared for protection class II applications and have an integrated filter in accordance with EN 55032, class B. The enhanced I/O insulation, the high power density and the option of providing peak current (130% for 30 s) is the way for a variety of demanding applications.
This text is machine translated.
This text is machine translated.
Features
- Encapsulated power supply with solder pins
- Fulfils the ERP-directive (less than 100 mW in idle mode)
- Approvals for the domestic and industrial use in accordance with EN 60335 and UL 62368-1
- Protected against permanent short circuit
- E/A-INSULATION 3,000 VAC
- II protection rating
Scope of delivery
- 10 pieces
