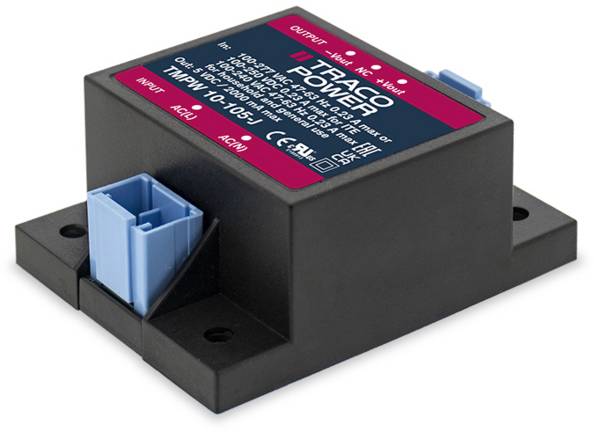

TracoPower TMPW 10-105-J SMPSU 5 V DC 2 A 10 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
Only 4 Piece(s) available
Highlights & Details
AC/DC-Switching power supply, TMPW 10-J-Series
- Output 5 V DC / 2 A
- Power 10 W
- Jack connector
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
305 V AC
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 55.1 x 43.2 x 23.0 mm
- Output voltage (max.)
5 V DC
- Connection
Jack connector
10 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-40 °C
- Weight
65 g
- Width
43.2 mm
- Height
23.0 mm
- Length
55.1 mm
- Type
TMPW 10-105-J
- Max. temperature
70 °C
- Min. temperature
-40 °C
