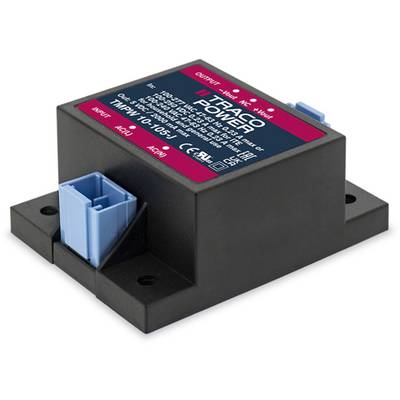

TracoPower TMPW 10-115-J SMPSU 15 V DC 0.66 A 10 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 21.00
30
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 21.00 / piece)
€ 210.00
plus VAT.
14-day return policy included
Highlights & Details
AC/DC switched-mode power supply, TMPW 10-J series
- Output 15 V DC / 0.66 A
- Power 10 W
- Jack connector
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
305 V AC
- Max. output current
0.66 A
- Output current (max.) - rounded
660 mA
- Min. input voltage
90 V AC
- Dim
(L x W x H) 55.1 x 43.2 x 23.0 mm
- Output voltage (max.)
15 V DC
- Connection
Jack connector
10 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-40 °C
- Weight
65 g
- Width
43.2 mm
- Height
23.0 mm
- Length
55.1 mm
- Type
TMPW 10-115-J
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
