Buy TracoPower TMR 12-4822WI DC/DC converter 12 V DC 0.5 A 12 W

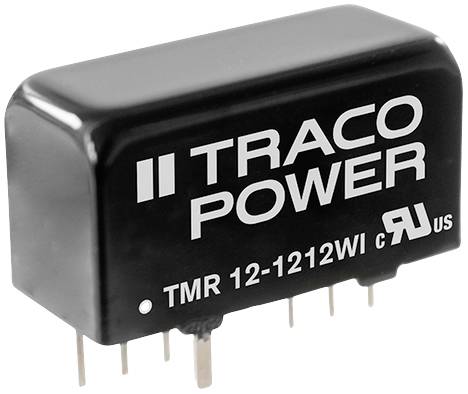

Black TRACO POWER module TMR 12-1212WI with white lettering, four electrical pins visible at the bottom.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 27.72 / piece)

€ 277.20

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DC/DC converter, TMR 12WI series

Output 12 V DC / 0.5 A
Power 12 W

Technical specifications

Product type: DC/DC converter

Input voltage (max.): 75 V DC

Max. output current: 0.5 A

Output current (max.) - rounded: 500 mA

Min. input voltage: 18 V DC

Dim: (L x W x H) 22 x 9.60 x 12 mm

Output voltage (max.): 12 V DC

: 12 W

No. of outputs: 2 x

Type: closed

Operating temperature (max.): +85 °C

Operating temperature (min.): -40 °C

Weight: 7.2 g

Width: 9.60 mm

Height: 12 mm

Length: 22 mm

Type: TMR 12-4822WI

Documents & Downloads

Datasheet

Datasheet 3373028 TracoPower TMR 12-4822WI DC/DC converter 12 V DC 0.5 A 12 W

User & Safety Instructions

User & Safety Instructions 3373028 TracoPower TMR 12-4822WI DC/DC converter 12 V DC 0.5 A 12 W

Warranty Terms

Warranty Terms 3373028 TracoPower TMR 12-4822WI DC/DC converter 12 V DC 0.5 A 12 W

Description

The TMR 12WI series offers insulated DC/DC converters with 12 watts of power and regulated outputs. This series offers a power density of 4.73 W/cm³ in an ultra-compact SIL-8 metal housing with a base area of 2.0 cm². Efficiency of up to 90% allows a working temperature range of –40° to +65°C without power reduction in convection cooling. Other features include external on/off function and I/O isolation of 1600 VDC. Owing to its very compact dimensions this series is suitable for a number of applications, where space is critical.
