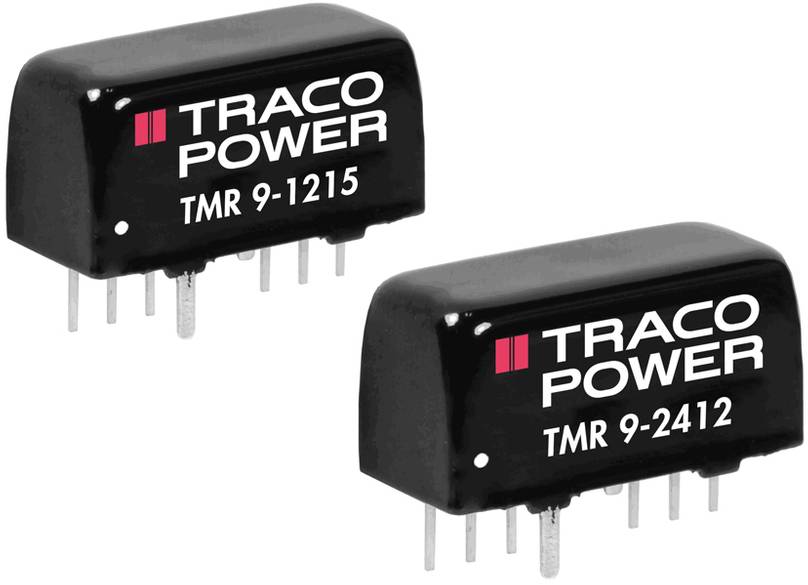

TracoPower TMR 9-4813 DC/DC converter (print) 48 V DC 15 V DC 600 mA 9 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 37.81 / piece)
€ 378.10
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TMR 9-4813
- Nominal voltage
48 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
15 V DC
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- Efficiency (max.)
89 %
9 W
- Insulation voltage
1600 V DC
- Enclosure
SIP 8
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 21.8 x 15.3 x 9.6 mm
- Height
9.6 mm
- Length
21.8 mm
- Width
15.3 mm
- Output voltage (max.)
15 V DC
- Output voltage (min.)
15 V DC
- Weight
5.9 g
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3371315 TracoPower TMR 9-4813 DC/DC converter (print) 48 V DC 15 V DC 600 mA 9 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371315 TracoPower TMR 9-4813 DC/DC converter (print) 48 V DC 15 V DC 600 mA 9 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371315 TracoPower TMR 9-4813 DC/DC converter (print) 48 V DC 15 V DC 600 mA 9 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371315 TracoPower TMR 9-4813 DC/DC converter (print) 48 V DC 15 V DC 600 mA 9 W No. of outputs: 1 x Content 1 pc(s)
Description
2:1 input range, high power density in the SIP8-casing, input/output insulation 1600 V/DC. Permanent short circuit, excellent control properties, external on/off.
