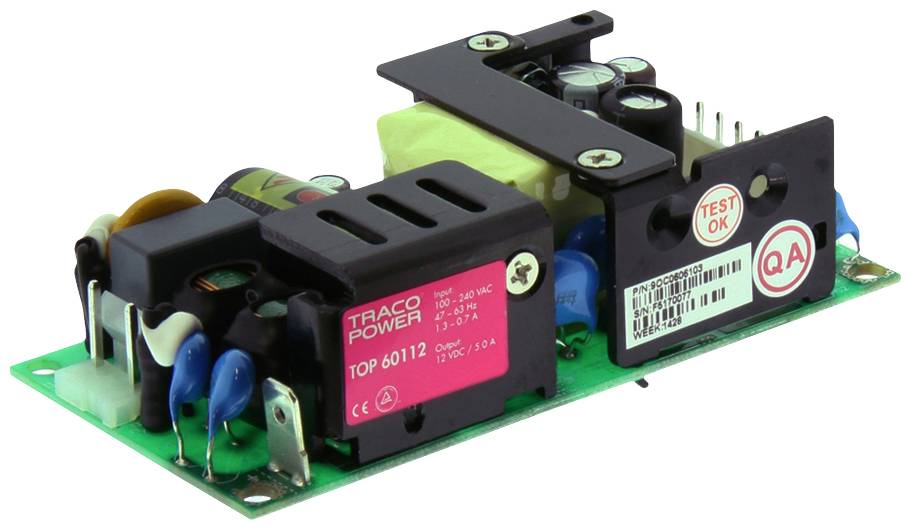

TracoPower TOP 60112 PSU 12 V DC 5 A 60 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Only 3 Piece(s) available
Highlights & Details
AC/DC power supply, TOP-Series
- Output 12 V DC / 5 A
- Power 60 W
- Connector
Technical specifications
- Product type
PSU
- Input voltage (max.)
264 V AC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 30.0 x 50.8 x 101.6 mm
- Output voltage (max.)
12 V DC
- Connection
Connector
60 W
- No. of outputs
1 x
- Type
open
- Weight
205 g
- Width
50.8 mm
- Height
101.6 mm
- Length
30.0 mm
- Type
TOP 60112
- Output current (min.)
0 A
- Output voltage (min.)
12 V DC
- No. of inputs
1 x
- Max. temperature
70 °C
- Min. temperature
-10 °C
