Buy TracoPower TPC 055-124 Rail mounted PSU (DIN) 24 V DC 2.3 A 55 W No. of outputs:1 x Content 1 pc(s)

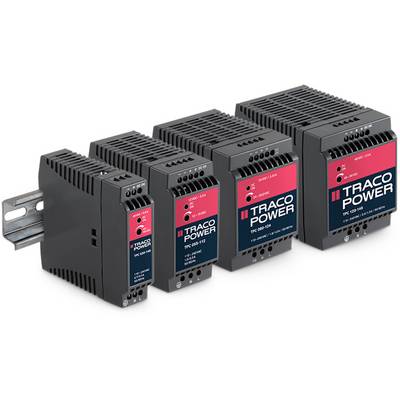

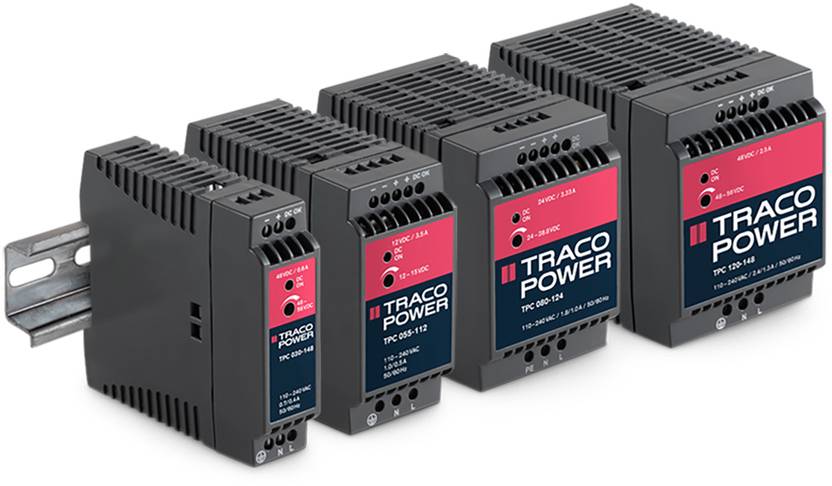

Four power supplies from Traco Power in a row, each with specific model numbers and power ratings, mounted on a metal rail.

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 78.98 / piece)

€ 78.98

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

AC-DC power supply, DIN rail, 55 W, 24 V/2.3 A

For industrial office and residential environments
Meets European ErP directive (green mode) <0.3 W no load power consumption
High efficiency across full load range
Compact plastic case
Reliable snap-on mounting on DIN-rails or with wall mounting bracket (included)
Universal input 85–264 VAC 47–63 Hz
Output voltage adjustable
Power good signal
Low ripple and noise
Overload and short-circuit protection
Optional module for parallel and redundant operation
Worldwide safety approval package
3-year product warranty

Technical specifications

Input voltage: 85-264 VAC
Output voltage range (adjustable): 24-28.8 VDC
Output current: 2.3 A
Power: 55 W
Efficiency: 87 %
Regulation: Input variation: 0.5 % max., Load regulation (0-100 %): 0.75 % max
Short circuit protection: <200 % of Iout nom.
Operating temperature range:-25°C to +70°C, Derating above +50°C: 2,5 %/K
Safety standards: UL 60950, UL 60950-1,CSA 60950-1-03, EN 60950-1, EN 50178, EN 60204, EN 61558-2-8, IEC 60950-1, UL 508C listed

Nominal input voltage: 85 - 375 V/DC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Input voltage (max.): 264 V AC

Max. output current: 2.3 A

Output current (max.) - rounded: 2.3 A

: 55 W

Output type (power supply units): Adjustable

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 96.5 x 45 x 90 mm

Weight: 260 g

Output voltage (max.): 28.8 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 70 °C

Max. operating temperature (derating): 50 °C

Operating temperature (min.): -25 °C

Manufacturer part #: TPC 055-124

Content: 1 pc(s)

PSU features: Surge protection
Adjustable voltage output

Width: 45 mm

Height: 90 mm

Length: 96.5 mm

Type: TPC 055-124

Efficiency: 87 %

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1083045 TracoPower TPC 055-124 Rail mounted PSU (DIN) 24 V DC 2.3 A 55 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1083045 TracoPower TPC 055-124 Rail mounted PSU (DIN) 24 V DC 2.3 A 55 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1083045 TracoPower TPC 055-124 Rail mounted PSU (DIN) 24 V DC 2.3 A 55 W No. of outputs:1 x Content 1 pc(s)

Description

The TRACOPOWER TPC series is a family of lightweight DIN-rail power supplies with an excellent price/performance ratio. They consume sparse standby power, and operate with high efficiency to comply with the requirements of the European Ecodesign directive. They have universal input of 85-264VAC or 90-375VDC and are designed for class I operation in industrial and residential environments. With the optional active current sharing redundancy module, these power supplies provide a very reliable true redundant DC supply.
