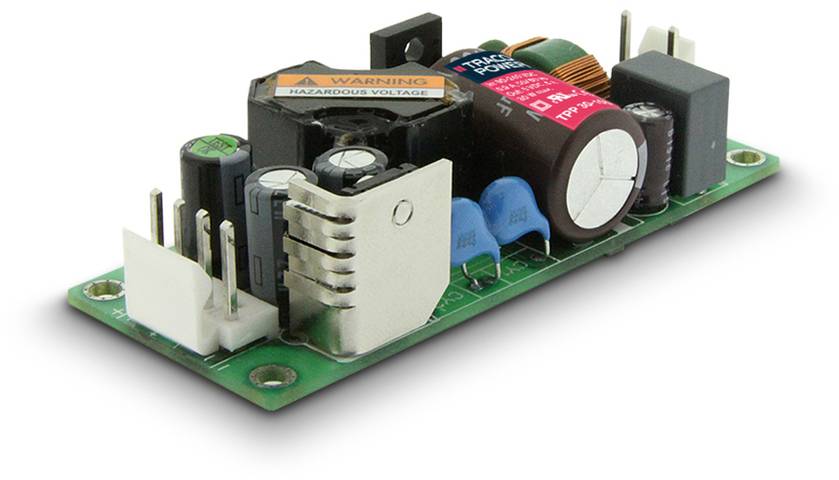

TracoPower TPP 30-115A-J SMPSU 16.5 V DC 2000 mA 30 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
14-day return policy included
Highlights & Details
AC/DC switched-mode power supply, TPP 30-series
- Output 16.5 V DC / 2000 mA
- Power 30 W
- Connector
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
2000 mA
- Output current (max.) - rounded
2 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 84.8 x 34.6 x 22.4 mm
- Output voltage (max.)
16.5 V DC
- Connection
Connector
30 W
- No. of outputs
1 x
- Type
open
- Weight
60.5 g
- Width
34.6 mm
- Height
22.4 mm
- Length
84.8 mm
- Type
TPP 30-115A-J
- Output current (min.)
0 mA
- Output voltage (min.)
13.5 V DC
- No. of inputs
1 x
- Interference suppression
EN 55011, according to IEC 60601-1-2 4th Edition EN 55032, class B
- Max. temperature
85 °C
- Min. temperature
-40 °C
