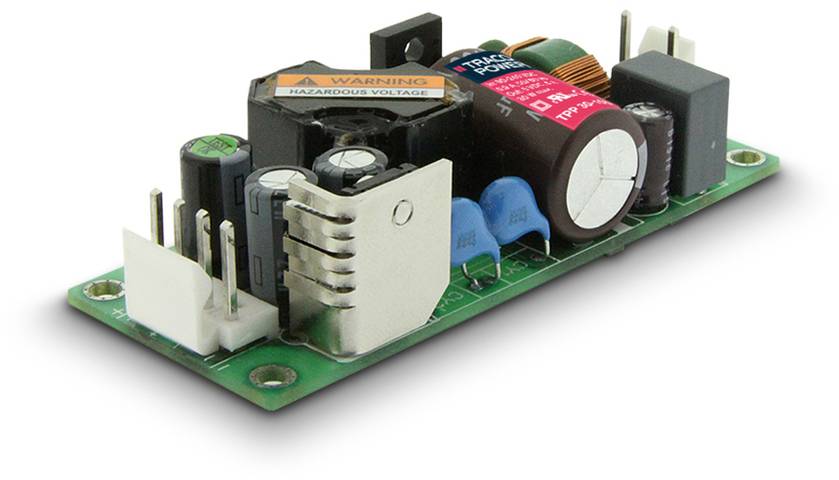

TracoPower TPP 30-124A-J SMPSU 26.4 V DC 1250 mA 30 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Only 2 Piece(s) available
Highlights & Details
AC/DC switching power supply, TPP30 Series
- Output 26.4 V DC / 1250 mA
- Power 30 W
- Connector
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
1250 mA
- Output current (max.) - rounded
1.25 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 84.8 x 34.6 x 22.4 mm
- Output voltage (max.)
26.4 V DC
- Connection
Connector
30 W
- No. of outputs
1 x
- Type
open
- Weight
60.5 g
- Width
34.6 mm
- Height
22.4 mm
- Length
84.8 mm
- Type
TPP 30-124A-J
- Output current (min.)
0 mA
- Output voltage (min.)
21.6 V DC
- No. of inputs
1 x
- Interference suppression
EN 55011, according to IEC 60601-1-2 4th Edition
EN 55032, Class B
- Max. temperature
85 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1661922 TracoPower TPP 30-124A-J SMPSU 26.4 V DC 1250 mA 30 W
Datasheet 1661922 TracoPower TPP 30-124A-J SMPSU 26.4 V DC 1250 mA 30 W
User & Safety Instructions
User & Safety Instructions 1661922 TracoPower TPP 30-124A-J SMPSU 26.4 V DC 1250 mA 30 W
Warranty Terms
Warranty Terms 1661922 TracoPower TPP 30-124A-J SMPSU 26.4 V DC 1250 mA 30 W
