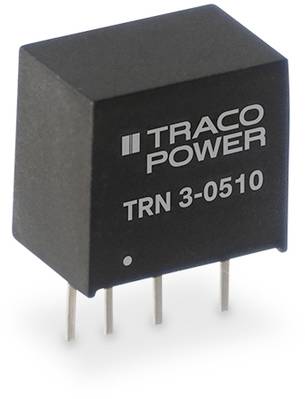

TracoPower TRN 3-0521 DC/DC converter (print) 9 V DC +5 V DC, -5 V DC 300 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 24.36
30
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 24.36 / piece)
€ 243.60
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TRN 3-0521
- Nominal voltage
9 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
13.2 V DC
- No. of outputs
2 x
- Output voltages
+5 V DC
-5 V DC
- Max. output current
300 mA
- Output current (max.) - rounded
300 mA
- Efficiency (max.)
77 %
3 W
- Insulation voltage
1600 V DC
- Enclosure
SIL
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 7.7 x 11.9 x 15.1 mm
- Height
15.1 mm
- Length
7.7 mm
- Width
11.9 mm
- Output voltage (max.)
5 V DC
-5 V DC
- Output voltage (min.)
5 V DC
-5 V DC
- Output current (min.)
0 mA
- Weight
2.1 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3371635 TracoPower TRN 3-0521 DC/DC converter (print) 9 V DC +5 V DC, -5 V DC 300 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3371635 TracoPower TRN 3-0521 DC/DC converter (print) 9 V DC +5 V DC, -5 V DC 300 mA 3 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371635 TracoPower TRN 3-0521 DC/DC converter (print) 9 V DC +5 V DC, -5 V DC 300 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371635 TracoPower TRN 3-0521 DC/DC converter (print) 9 V DC +5 V DC, -5 V DC 300 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Description
Compact SIL-casing (11.9 mm x 7.7 mm x 11.0 mm), 2:1 input range. Exactly regulated output voltage, short-circuit proof.
