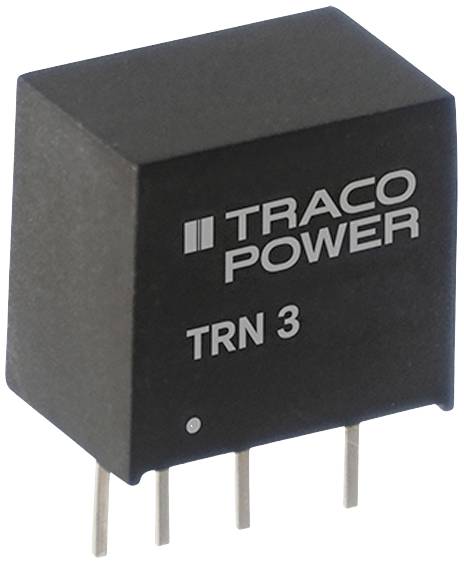

TracoPower TRN 3-1213 DC/DC converter (print) 12 V DC +15 V DC 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 21.00
30
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 21.00 / piece)
€ 210.00
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TRN 3-1213
- Nominal voltage
12 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Output voltages
+15 V DC
- Max. output current
200 mA
- Output current (max.) - rounded
200 mA
- Efficiency (max.)
83 %
3 W
- Insulation voltage
1600 V DC
- Enclosure
SIL
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 7.7 x 11.9 x 15.1 mm
- Height
15.1 mm
- Length
7.7 mm
- Width
11.9 mm
- Output voltage (max.)
15 V DC
- Output voltage (min.)
15 V DC
- Output current (min.)
0 mA
- Weight
2.1 g
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3371641 TracoPower TRN 3-1213 DC/DC converter (print) 12 V DC +15 V DC 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371641 TracoPower TRN 3-1213 DC/DC converter (print) 12 V DC +15 V DC 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371641 TracoPower TRN 3-1213 DC/DC converter (print) 12 V DC +15 V DC 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371641 TracoPower TRN 3-1213 DC/DC converter (print) 12 V DC +15 V DC 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact SIL-casing (11.9 mm x 7.7 mm x 11.0 mm), 2:1 input range. Exactly regulated output voltage, short-circuit proof.
