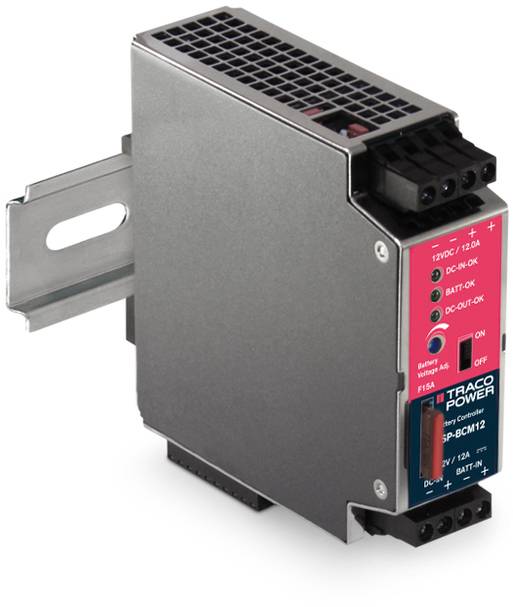

TracoPower TSP-BCM12 Rail mounted PSU (DIN) DC/DC 12000 mA 144 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Only 3 Piece(s) available
Highlights & Details
AC/DC switching power supply, TSP series
- Battery control module
- Protection against overvoltage, deep discharge, short-circuit and polarity reversal
- Alarm outputs for input, output and battery status
- Monitoring of the charging voltage via temperature sensor
- International safety approvals
- This text is machine translated.
Technical specifications
- Product type
Rail mounted PSU (DIN) DC/DC
- Min. input voltage
+12.0 V DC
- Input voltage (max.)
+12.0 V DC
- Max. output current
12000 mA
- Output current (max.) - rounded
12 A
144 W
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 115.0 x 35.0 x 110.0 mm
- Weight
500 g
- Output voltage (max.)
+14.0 V DC
- Output voltage (min.)
+12.0 V DC
- Operating temperature (max.)
70 °C
- Min. operating temperature (derating)
40 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
TSP-BCM12
- Content
1 pc(s)
- Width
35.0 mm
- Height
110.0 mm
- Length
115.0 mm
- Max. temperature
70 °C
- Min. temperature
-25 °C
- Type
TSP-BCM12
