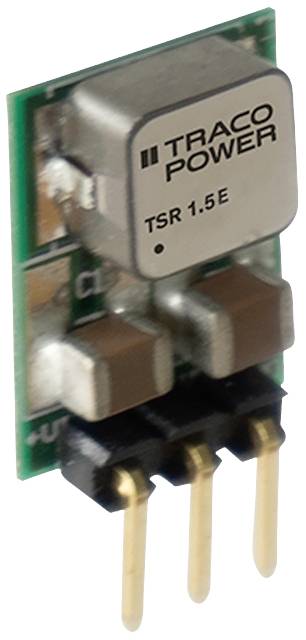

TracoPower TSR 1.5-2433E DC/DC converter 3.3 V DC 1.5 A 1.5 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
DC DC Converters
- Output 3.3 V DC / 1.5 A
- Power 1.5 W
- Solder pins
Technical specifications
- Product type
DC/DC converter
- Input voltage (max.)
36.0 V DC
- Max. output current
1.5 A
- Output current (max.) - rounded
1.5 A
- Min. input voltage
7.0 V DC
- Dim
(L x W x H) 19.37 x 10.0 x 6.45 mm
- Output voltage (max.)
3.3 V DC
- Connection
Solder pins
1.5 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Weight
2 g
- Width
10.0 mm
- Height
6.45 mm
- Length
19.37 mm
- Type
TSR 1.5-2433E
- Efficiency (max.)
93 %
- Output current (min.)
0 mA
- Output voltages
+3.3 V DC
- Output voltage (min.)
3.3 V DC
