Buy TracoPower TXH 240-124 SMPSU 24 V DC 10 A 240 W

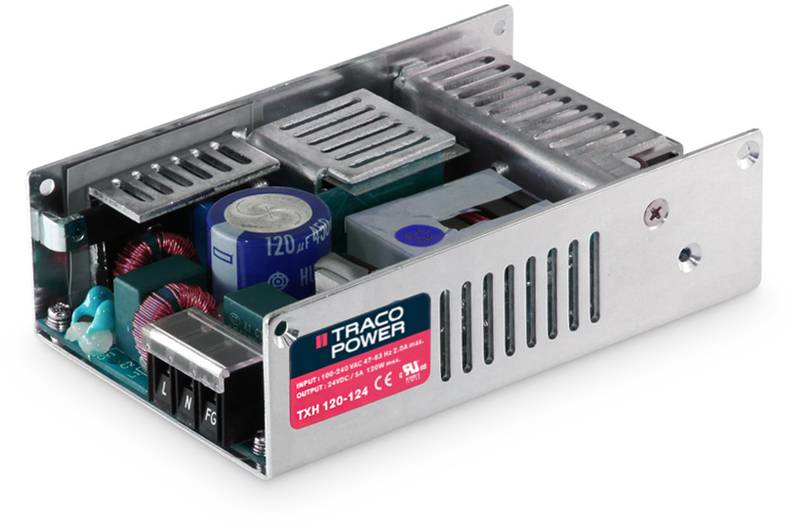

Open switch-mode power supply with metal chassis, capacitors and inductors visible. Label with manufacturer information and model number.

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

TracoPower TXH 240-124 SMPSU 24 V DC 10 A 240 W

No fan
Efficiency: 90% type.
Compact U-angle casing

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

Min. input voltage: 90 V AC

Dim: (L x W x H) 177 x 106 x 35 mm

Output voltage (max.): 24 V DC

Connection: Screw terminal

: 240 W

No. of outputs: 1 x

Output voltage 1: 24 V DC

Output current 1: 10 A

Type: closed

Weight: 580 g

Type: Synchronised

Width: 106 mm

Height: 35 mm

Length: 177 mm

Type: TXH 240-124

MTBF: 50000 h

: 240 W

Connection: Screw terminals

Input voltage: 90 - 264 V AC

Max. temperature: +70 °C

Min. temperature: -10 °C

Documents & Downloads

Datasheet

Datasheet 512350 TracoPower TXH 240-124 SMPSU 24 V DC 10 A 240 W

User & Safety Instructions

User & Safety Instructions 512350 TracoPower TXH 240-124 SMPSU 24 V DC 10 A 240 W

Warranty Terms

Warranty Terms 512350 TracoPower TXH 240-124 SMPSU 24 V DC 10 A 240 W

Description

Highly efficient built-in power supply with wide-range input. The output voltage is set permanently. This prevents a possible change in the voltage through mechanical adjustment elements.

Features

Current limitation/DC-surge protection>110%
Remaining ripple<1 %.
According to EN55011, Class B, EN55022 Class B and FCC, Part 15, Level B, EN61000-3-2/-1, cUL/UL/IEC/EN 60950-1, CB-report
Operating temperature: -10 to +70 ºC (derating>50 °C
