Buy TracoPower TXL 035-0524D SMPSU 5 V DC 4.0 A 35 W

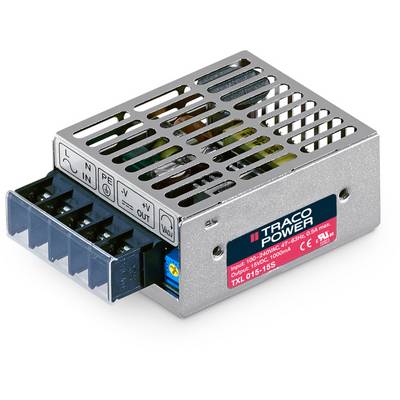

A silver Traco Power power supply model TXL 015-15S with electrical connections. Suitable for 100-240VAC input voltage.

Datasheet (PDF)

Unavailable

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 60.50 / piece)

€ 60.50

plus VAT.

Report legal concerns

Highlights & Details

TracoPower TXL 035-0524D SMPSU 5 V DC 4.0 A 35 W

Model with multiple outputs

Technical specifications

Type: TXL 035-0524D

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 4.0 A

Output current (max.) - rounded: 4 A

Min. input voltage: 85 V AC

Dim: (L x W x H) 99 x 82 x 35 mm

Output voltage (max.): 5 V DC

Connection: Screw terminal

: 35 W

No. of outputs: 2 x

Output voltage 1: 5 V DC

Output voltage 2: +24 V DC

Output current 1: 4.0 A

Output current 2: 1.3 A

Type: closed

Type: Synchronised

Width: 82 mm

Height: 35 mm

Length: 99 mm

Type: TXL 035-0524D

Output current 2 (max.): 1.3 A

Output voltage 2 (max.): 24 V DC

: 35 W

Connection: Screw terminals

PFC: Yes

Input voltage: 85 - 264 V AC

Documents & Downloads

Datasheet

Datasheet 511029 TracoPower TXL 035-0524D SMPSU 5 V DC 4.0 A 35 W

User & Safety Instructions

User & Safety Instructions 511029 TracoPower TXL 035-0524D SMPSU 5 V DC 4.0 A 35 W

Warranty Terms

Warranty Terms 511029 TracoPower TXL 035-0524D SMPSU 5 V DC 4.0 A 35 W

Description

Features

Compact metal housing with screw terminals.
Models with single (S) -, dual (DI) - and triple (TI)-output (TI / DI-types with isolated outputs)
Output voltage ± 10%
Universal input 85 - 264 V / AC
EMC Compliant to EN 61000-3-2 and EN 61000-6-3/-1 (PFHC)
Short-circuit and overvoltage protection
Industrial quality
3-year guarantee
Safety / Approvals by cUL / UL 60950-1, IEC / EN 60950, CB report
Power control ±1% max
Load Regulation ± 2% max
Remaining ripple < 1% Vaus
Short Circuit Protection 105 - 150% Iaus
Foldback overload protection, automatic recovery
Operating temperature: -10 to + 70 °C.
