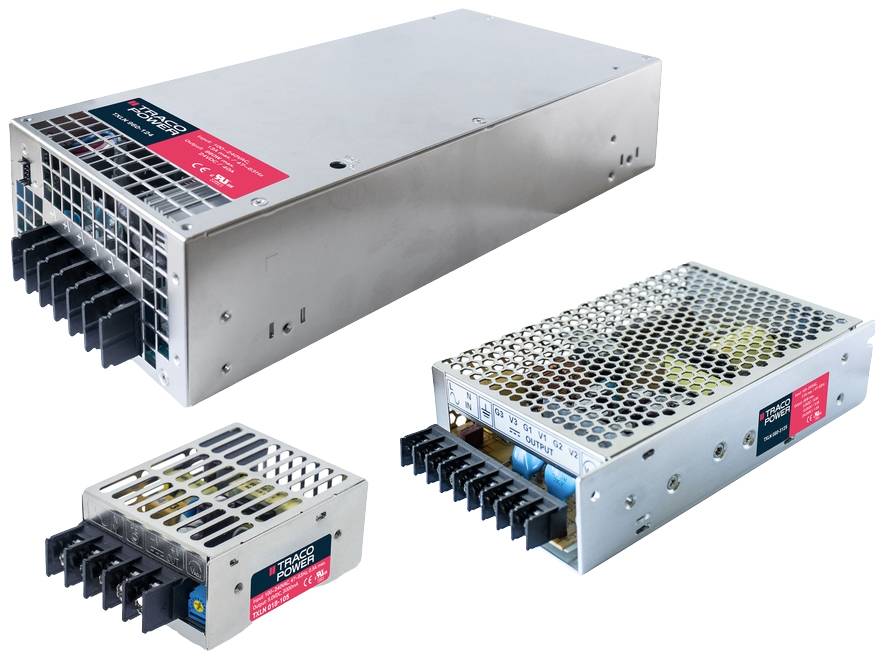

TracoPower TXLN 035-22M2 AC/DC PSU module (+ enclosure) 12 V DC 3 A 35 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Only 3 Piece(s) available
Highlights & Details
AC/DC PSU Components
- Output 12 V DC / 3 A
- Power 35 W
- Screw terminal
Technical specifications
- Product type
AC/DC PSU module (+ enclosure)
- Input voltage (max.)
264 V AC
- Max. output current
3 A
- Output current (max.) - rounded
3 A
- Min. input voltage
88 V AC
- Dim
(L x W x H) 106.8 x 82.0 x 28.0 mm
- Output voltage (max.)
12 V DC
- Connection
Screw terminal
35 W
- No. of outputs
2 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
50 °C
- Operating temperature (min.)
-20 °C
- Weight
350 g
- Width
82.0 mm
- Height
28.0 mm
- Length
106.8 mm
- Type
TXLN 035-22M2
- MTBF
340000 h
- Output current 2 (max.)
1.50 A
- Output current (min.)
0 mA
- Output voltage 2 (max.)
-12 V DC
- Output voltage 2 (min.)
-12 V DC
- Output voltage (min.)
12 V DC
- PFC
No
