Buy TracoPower TXM 025-112 SMPSU 13.2 V DC 2.1 A 25 W

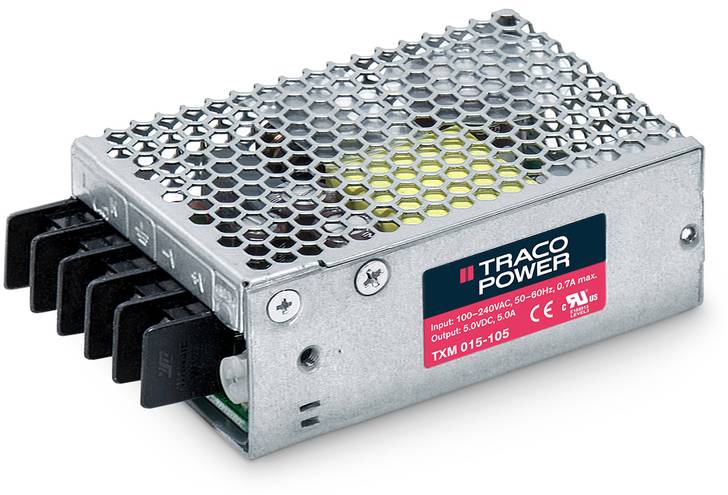

Industrial power supply with ventilation grille, multiple black connectors, metallic casing, and a label reading 'Traco Power'.

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 24.36 / piece)

€ 24.36

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

AC-DC power supply, 25 W, 12 V/2.1 A

Very compact metal cased power supplies
Cost optimized design
High operating temperature up to 70°C
Low no load power consumption <0.5W up to 75 W units
Screw terminal block
No internal fan up to 150 W models
Universal input AC input full range
Withstand 300 VAC surge input for 5 s
Adjustable output voltage
3-year product warranty

Technical specifications

Input voltage range: 90-264 VAC
Output voltage range (adjustable): 11.4-13.2 VDC
Output current: 2.1 A
Power: 25 W
Efficiency: 82 % (at 230 VAC)
Regulation: Input variation: 0.5 % max., Load variation (10-100 %): 2.0 % max
Over load protection mode: constant power, automatic recovery (Hiccup mode)
Over voltage protection: 105-150 % of Vout norm
Operating temperature range: see datasheet, Derating: see datasheet
I/O isolation: 3000 VAC (60 s)
Safety standards: cUL/UL 60950-1,IEC/EN 60950-1, CB scheme

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 2.1 A

Output current (max.) - rounded: 2.1 A

Min. input voltage: 90 V AC

Dim: (L x W x H) 51 x 90.6 x 28.8 mm

Output voltage (max.): 13.2 V DC

Connection: Screw terminal

: 25 W

Type: closed

Weight: 165 g

Width: 90.6 mm

Height: 28.8 mm

Length: 51 mm

Type: TXM 025-112

Documents & Downloads

Datasheet

Datasheet 1083062 TracoPower TXM 025-112 SMPSU 13.2 V DC 2.1 A 25 W

User & Safety Instructions

User & Safety Instructions 1083062 TracoPower TXM 025-112 SMPSU 13.2 V DC 2.1 A 25 W

Warranty Terms

Warranty Terms 1083062 TracoPower TXM 025-112 SMPSU 13.2 V DC 2.1 A 25 W

Description

The TRACOPOWER TXM series is a family of encased power supplies designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, they are easy to install in any equipment. There are 40 models with single output voltages from 3.3 VDC to 48 VDC in 9 power ranges from 15 W to 320 W. These power supplies have universal input and comply with European EMC standards and the Low Voltage Directive (LVD).
