Transcend MTE652T2 512 GB NVMe/PCIe M.2 internal SSD PCIe NVMe 3.0 x4 Industrial TS512GMTE652T2
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

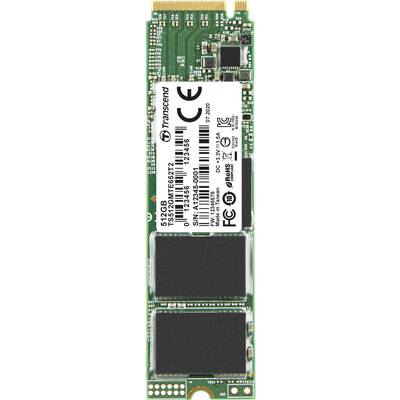

transcend MTE652T2 PCIe M.2 SSD
- Memory capacity: 512 GB
- With DRAM cache
- 30µ" PCB gold contacts
- Endurance: 3K P/E cycles (program/erase cycles) guaranteed
- PCIe Gen 3 x4 interface
- Key components are reinforced with Corner Bond technology as standard
- Meets PCI Express 3.1 specifications
- Complies with NVM Express 1.3 specifications
- Supports NVM Command
- SLC caching technology
- Built-in LDPC ECC (Error Correction Code) functionality
- Dynamic thermal throttling
- Complies with RoHS 2.0 standards
- Supports transcend SSD Scope Pro
Technical specifications
- Product type
NVMe/PCIe M.2 internal SSD
- Series
MTE652T2
- Form factor
M.2 Module 2280
- Interfaces
PCIe NVMe 3.0 x4
- Memory capacity
512 GB
- Reading
2100 MBps
- Writing
1000 MBps
- IOPS read speed (max.)
190000 IOPS
- IOPS write speed (max.)
290000 IOPS
- Width
22 mm
- Height
3.58 mm
- Depth
80 mm
- Type
Industrial
- Operating temperature (max.)
75 °C
- Operating temperature (min.)
-20 °C
- Operating temperature range
-20 up to 75 °C
Documents & Downloads
Datasheet
Datasheet 2302582 Transcend MTE652T2 512 GB NVMe/PCIe M.2 internal SSD PCIe NVMe 3.0 x4 Industrial TS512GMTE652T2
User & Safety Instructions
User & Safety Instructions 2302582 Transcend MTE652T2 512 GB NVMe/PCIe M.2 internal SSD PCIe NVMe 3.0 x4 Industrial TS512GMTE652T2
Warranty Terms
Warranty Terms 2302582 Transcend MTE652T2 512 GB NVMe/PCIe M.2 internal SSD PCIe NVMe 3.0 x4 Industrial TS512GMTE652T2
Description
Transcend's MTE652T2 M.2 SSD has the PCI Express (PCIe) Gen 3 x4 interface and is compatible with the NVM Express (NVMe) 1.3 specifications, thus achieving very high transfer speeds. The MTE652T2 features the latest 3D NAND technology for high memory efficiency, 30µ" PCB gold contacts and Corner-Bond technology for long durability, DRAM cache for fast access, extended operating temperature range from -20°C to 75°C and durability of 3K write/erase cycles for reliable operation.
