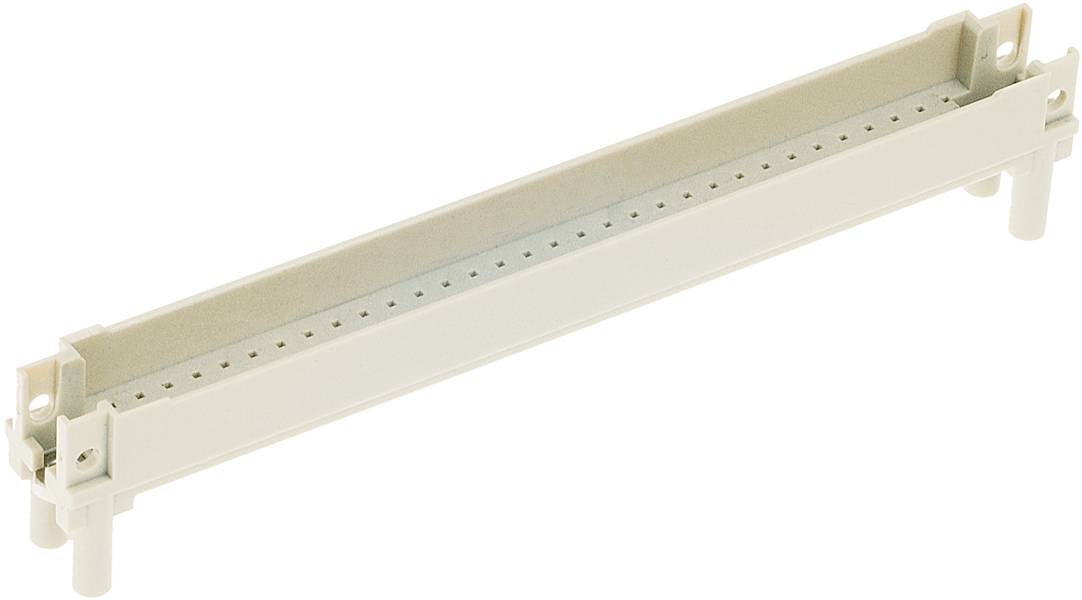

Transfer bracket 09030009963 HARTING Content: 1 pc(s) Transfer bracket
EAN:
Part number:
Item no:
Product type
Transfer bracket
Type
09 03 000 9963
Manufacturer part #
09030009963
Content
1 pc(s)
Material
Plastic
Datasheet (PDF)
Technical specifications
- DIN 41612 series
- Length of pins: 16.2 mm;17 mm;20 mm
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material flammability class acc. To UL 94: V-0
- Net weight: 6.21 g
- Features: Lead-free
- Railway classification: F1/I2 in accordance with NFF 16-101/102
- Board thickness: 2,6 mm ±0.5 ;3,4 mm ±0.5 ;6,4 mm ±0.5
- Accessory type: Transfer frame
- Accessories description: For C-type female multipoint connectors;for R-type female multipoint connectors
- Material accessories: Plastic
- Colour accessories: RAL 7032 (pebble gray)
- Mounting: Screw fixing
- Type
09 03 000 9963
- Product type
Transfer bracket
- Manufacturer part #
09030009963
- Content
1 pc(s)
- Material
Plastic
Other
Documents & Downloads
Datasheet
Datasheet 3009278 Transfer bracket 09030009963 HARTING Content: 1 pc(s) Transfer bracket
Datasheet 3009278 Transfer bracket 09030009963 HARTING Content: 1 pc(s) Transfer bracket
User & Safety Instructions
User & Safety Instructions 3009278 Transfer bracket 09030009963 HARTING Content: 1 pc(s) Transfer bracket
Description
Transfer frame, for Type C female multipoint connector, for R-type male, plastic female, RAL 7032 (pebble gray)
