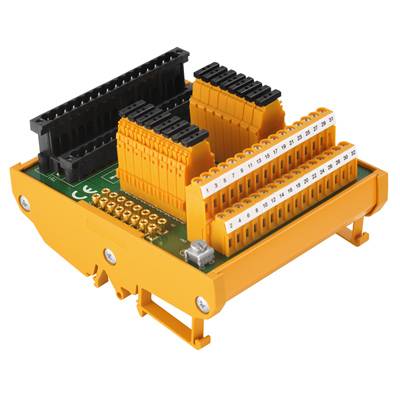

Transfer module FTA-C300-16AO-TEST-S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
32
Stripping length (max.)
6 mm
Dim
(L x W x H) 110 x 133 x 95 mm
Connector (field)
Screws
Datasheet (PDF)
Highlights & Details
Transfer module
- FTA-C 300-16 AO-TEST-S
Technical specifications
- Rated insulation voltage: ≤ 50 V DC
- Overvoltage category: III
- Pollution degree: 2
- Pulse voltage testing (1.2/50µs): 0.8 kV
- Breakdown voltage test: 0.35 kVAC
- conductor cross-section min. AWG: AWG 26
- conductor cross-section max. AWG: AWG 12
- Torque, min.: 0.5 Nm
- Torque, max.: 0.6 Nm
- LED status display per channel: No
- Separation per channel: Yes
- Voltage measuring point: Yes
- Current measuring points: Yes
- Type of test point: Diameter 2 mm
- Wire system: 1-wire
- protective conductor connection: M4 round terminal
- Operating voltage: 24 V DC ± 10%
- Maximum current per channel: 1 A.
- Product type
Transfer module
- Total no. of pins
32
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 110 x 133 x 95 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Type
Interface, RS, 1-wire, screw connection
- Weight
386 g
- Content
1 pc(s)
- Suitable for
Honeywell C300
- Number of pins
32
- Width
133 mm
- Height
95 mm
- Length
110 mm
- RoHS-compliant
Yes
- Series
FTA-C300
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Features
analogue only
+ shielding connector
1-wire connector
- Type
FTA-C 300-16 AO-TEST-S
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201704 Transfer module FTA-C300-16AO-TEST-S Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201704 Transfer module FTA-C300-16AO-TEST-S Weidmüller Content: 1 pc(s)
Description
Transfer module. 1-wire, screw connection. Direct analogue input/output connections (FTA) for the IOTAs of Honeywell C300. Passive interfaces (FTA) for connection to analogue IOTAs of Honeywell C300. Unique identification: the same connector and orientation on to FTA and IOTA. 2 units can also be used for the digital IOTAs. Cut-off switch and test points (diameter 2 mm) for voltage and current measurement. The FTAs have a connection M4 for the shielding. Screw-type or spring-cage connection.
This text is machine translated.
