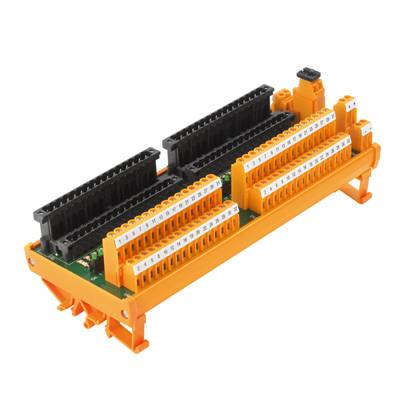

Transfer module FTA-C300-32DI-LD-S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
64
Stripping length (max.)
6 mm
Dim
(L x W x H) 216 x 87 x 65 mm
Datasheet (PDF)
Highlights & Details
Transfer module
- FTA-C 300-32 DI-LD-S
Technical specifications
- Rated insulation voltage< 50 V AC
- Over voltage category III
- Pollution level: 2
- Pulse voltage testing (1.2/50µs): 0.8 kV
- Dielectric strength test: 0.35 kVAC
- Core cross section (min.) AWG 26
- Conductor cross-section max. AWG: AWG 12
- Tightening torque, min.: 0.5 Nm
- Tightening torque, max. 0.6 Nm
- LED status display per channel: Green
- Separation per channel: No.
- Voltage measuring point: No.
- Current measurement test points: No.
- Type of test point: No.
- Wiring system: 1-wire
- Operating voltage 24 V DC ± 10%
- Maximum current per channel: 1 A.
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
64
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 216 x 87 x 65 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Type
Interface, RS, 1-wire, screw connection
- Operating current
5 A
- Weight
417 g
- Content
1 pc(s)
- Suitable for
Honeywell C300
- Number of pins
64
- Width
87 mm
- Height
65 mm
- Length
216 mm
- RoHS-compliant
Yes
- Series
FTA-C300
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Features
+ LED
- Type
FTA-C 300-32 DI-LD-S
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201699 Transfer module FTA-C300-32DI-LD-S Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201699 Transfer module FTA-C300-32DI-LD-S Weidmüller Content: 1 pc(s)
Description
Transfer module. 1-wire, screw connection. Direct Digital input/output connections (FTA) for the IOTAs of Honeywell C300. Passive interfaces (FTA) for connection to the digital IOTAs of Honeywell C300. Unique identification: the same connector and orientation on to FTA and IOTA. The indicator light (LED) is used to display the switching state. Possibility to supply the IOTA via the FTA (fuse protected). Fuse protected per channel (option). Screw-type or spring-cage connection.
