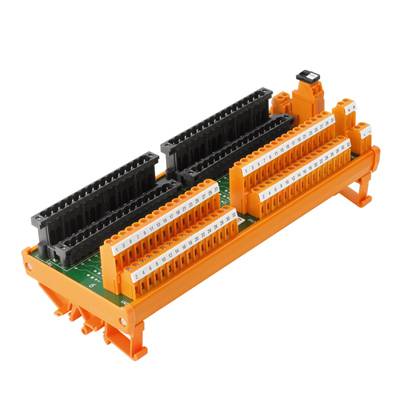

Transfer module FTA-C300-32DIOHV-S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Connection
Screw terminal
Stripping length (max.)
6 mm
Dim
(L x W x H) 216 x 87 x 65 mm
Datasheet (PDF)
Highlights & Details
Transfer module
- FTA-C 300-32 DIOHV-S
Technical specifications
- Rated insulation voltage<: 250 V AC
- Overvoltage category: II
- Pollution degree: 2
- Pulse voltage test (1.2/50µs): 2 kV
- Breakdown voltage test: 1.2 kVAC
- LED status display per channel: No
- Type of test point: No
- Operating voltage: ≤ 250 V AC
- Maximum current per channel: 1 A.
- Packaging type
Piece
- Product type
Transfer module
- Connection
Screw terminal
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 216 x 87 x 65 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Type
Interface, RS
- Weight
440 g
- Content
1 pc(s)
- Suitable for
Honeywell C300
- Width
87 mm
- Height
65 mm
- Length
216 mm
- RoHS-compliant
Yes
- Series
FTA-C300
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Features
+ LED
- Type
FTA-C 300-32 DIOHV-S
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201688 Transfer module FTA-C300-32DIOHV-S Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201688 Transfer module FTA-C300-32DIOHV-S Weidmüller Content: 1 pc(s)
Description
Transfer module. 1-wire, screw connection. Direct Digital input/output connections (FTA) for the IOTAs of Honeywell C300. Passive interfaces (FTA) for connection to the digital IOTAs of Honeywell C300. Unique identification: the same connector and orientation on to FTA and IOTA. The indicator light (LED) is used to display the switching state. Possibility to supply the IOTA via the FTA (fuse protected). Fuse protected per channel (option). Screw-type or spring-cage connection.
