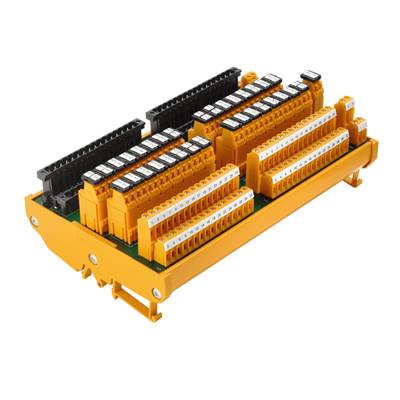

Transfer module FTA-C300-32DO-FUSE-S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Connection
Screw terminal
Dim
(L x W x H) 217 x 133 x 95 mm
Connector (field)
Screw terminal
Datasheet (PDF)
Highlights & Details
Transfer module
- FTA-C 300-32 DO-FUSE-S
Technical specifications
- Rated insulation voltage<: 50 V AC
- Overvoltage category: III
- Pollution degree: 2
- Pulse voltage test (1.2/50µs): 0.8 kV
- Breakdown voltage test: 0.35 kVAC
- LED status display per channel: No
- Type of test point: No
- Operating voltage: 24 V DC ± 10%
- Maximum current per channel: 1 A.
- Packaging type
Piece
- Product type
Transfer module
- Connection
Screw terminal
- Dim
(L x W x H) 217 x 133 x 95 mm
- Connector (field)
Screw terminal
- Connector (control)
Connector
- Weight
701.95 g
- Content
1 pc(s)
- Suitable for
Honeywell C300
- Width
133 mm
- Height
95 mm
- Length
217 mm
- RoHS-compliant
Yes
- Series
FTA-C300
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Features
+ illuminated display
- Type
FTA-C 300-32 DO-FUSE-S
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201954 Transfer module FTA-C300-32DO-FUSE-S Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201954 Transfer module FTA-C300-32DO-FUSE-S Weidmüller Content: 1 pc(s)
Description
Transfer module. 1-wire, screw connection. Direct Digital input/output connections (FTA) for the IOTAs of Honeywell C300. Passive interfaces (FTA) for connection to the digital IOTAs of Honeywell C300. Unique identification: the same connector and orientation on to FTA and IOTA. The indicator light (LED) is used to display the switching state. Possibility to supply the IOTA via the FTA (fuse protected). Fuse protected per channel (option). Screw-type or spring-cage connection.
