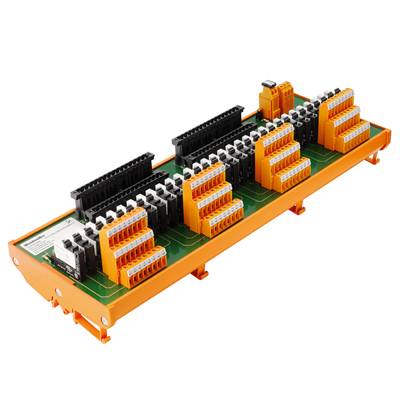

Transfer module FTA-C300-32DO-RSLIM-S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
64
AWG
AWG 12
Stripping length (max.)
6 mm
Datasheet (PDF)
Highlights & Details
Transfer module
- FTA-C 300-32 DO-RSLIM-S
Technical specifications
- Contamination level: 2
- pulse voltage testing (1.2/50µs): 6 kV
- dielectric strength test: 1.2 kVAC
- conductor cross-section min. AWG: AWG 26
- wire cross-section max. AWG: AWG 12
- torque, min.: 0.5 Nm
- torque, max.: 0.6 Nm
- wire system: 1-wire
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
64
AWG 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 368 x 133 x 95 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Type
Interface, RS, 1-wire, screw connection
- Weight
1800 g
- Content
1 pc(s)
- Suitable for
Honeywell C300
- Number of pins
64
- Width
133 mm
- Height
95 mm
- Length
368 mm
- RoHS-compliant
Yes
- Series
FTA-C300
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Features
+ LED
- Type
FTA-C 300-32 DO-RSLIM-S
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201690 Transfer module FTA-C300-32DO-RSLIM-S Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201690 Transfer module FTA-C300-32DO-RSLIM-S Weidmüller Content: 1 pc(s)
Description
Transfer module. 1-wire, screw connection. Insulated FTA (field wiring connections) for digital input/output from Honeywell C300. Isolated interfaces (FTA) for connection to the digital IOTAs (input/output connections) from Honeywell C300. Unique identification: the same connector and orientation on to FTA and IOTA. The indicator light (LED) is used to display the switching state. High power switching capacity in a compact design. Possibility to supply the IOTA via the FTA (fuse protected). Screw-type or spring-cage connection.
