Buy Transfer module Phoenix Contact 2903043 DFLK 50/FKCT Content: 1 pc(s)

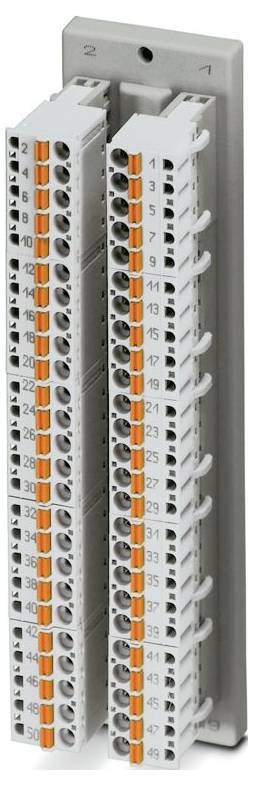

'Gray electrical terminal block with 50 numbered connection points and orange levers for securing wires, mounted on a vertical panel.'

Image similar

Product type

Transfer module

Total no. of pins

Connection

IDC/FLK strip

Push-in spring-loaded terminal

Mounting type

Rear panel fitting

AWG

24 - 12

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product family: VARIOFACE
Number of pins: 50
Push-in spring-loaded connection type
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²;0.25 mm² ... 2.5 mm² (wire-end sleeve without plastic sleeve);0.25 mm² ... 2.5 mm² (wire-end sleeve with plastic sleeve)
Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
Wire cross-section AWG: 24 ... 12
Width 38 mm
Height: 143.4 mm
Depth: 58.77 mm
Colour: Grey (RAL 7042)
Ambient conditions: Environmental conditions
Ambient temperature (operation): -20 °C ... 50 °C
Ambient temperature (storage/transport): -20 °C ... 70 °C
Altitude: ≤ 2000 m.
Standards/regulations: EN IEC 60664-1
Mounting type: Rear panel fitting
Overvoltage category II
Pollution level: 2
Stripped length: 10 mm
Air and creepage distances: Air and creepage distances
All mounting positions permitted
Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
Contact spacing: 5 mm
Connection according to IEC 60603-13 standard
Operating mode 100 % ED
Certificate: UKCA-compliant
Article dimensions: Article dimensions
Status display: No.
Insulation: Functional insulation
UKCA
Rated insulation voltage 63 V
Rated surge voltage 0.6 kV (1.2 / 50 μs)
Protection type (installation location) ≥ IP54
Conductor cross-section flexible (2 conductors of the same cross-section): 0.5 mm² ... 1.5 mm² (TWIN-end sleeve with plastic sleeve)
Status display available: No.
Number of connections: 1
Insulation properties: Air and creepage distances: Insulation properties: Air- and creepage distances
Mating cycles > 50
OPERATING VOLTAGE (AC) ≤ 30 V AC
OPERATING VOLTAGE (DC): ≤ 60 V DC
Current (each branch): ≤ 1 A.
Current (total current) ≤ 50 A (50 °C)
Connection 1 (control level): Connection 1 (control level)
Connection 2 (field level): Connector 2 (field level)
Protection class (module) IP20
