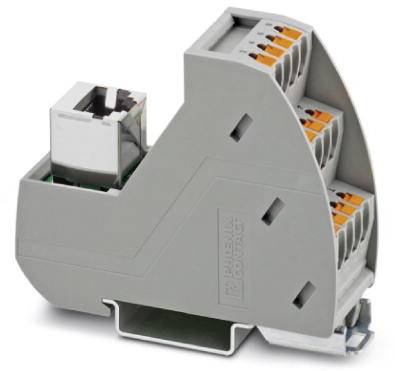

Transfer module Phoenix Contact 2904290 VIP-3/PT/RJ45 Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
8
AWG
26 - 14
Stripping length (max.)
8 mm
Dim
(L x W x H) 63 x 26.6 x 75.8 mm
Datasheet (PDF)
Technical specifications
- All mounting positions permitted
- NOMINAL VOLTAGE UN 48 V AC/DC
- Product type
Transfer module
- Total no. of pins
8
26 - 14
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 63 x 26.6 x 75.8 mm
- Connector (field)
Push-in connector
- Connector (control)
RJ45
Socket
- Operating current
1 A
- Content
1 pc(s)
- Number of pins
8
- Width
26.6 mm
- Height
75.8 mm
- Length
63 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136760 Transfer module Phoenix Contact 2904290 VIP-3/PT/RJ45 Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136760 Transfer module Phoenix Contact 2904290 VIP-3/PT/RJ45 Content: 1 pc(s)
Description
VARIOFACE module with push-in connection and RJ45 plug
