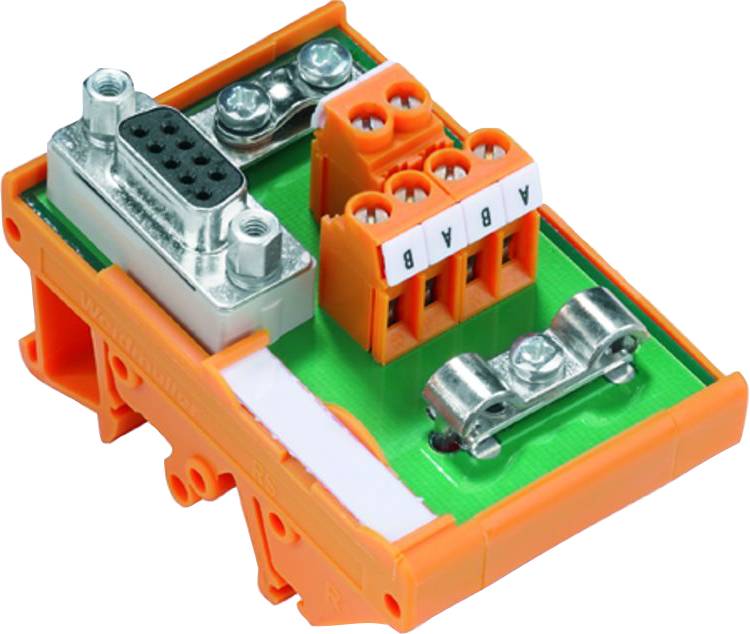

Transfer module PROFIBUS-DP T-piece RS PB-DP T SUB-D Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Connection
Screw terminal
Connector (field)
D-SUB-9
Connector (control)
Screw terminal
Type
SUB-D PROFIBUS-DP, IP20
Datasheet (PDF)
Highlights & Details
Transfer module PROFIBUS-DP T-piece
- RS PB DP T SUB-D
Technical specifications
- Product type
Transfer module
- Connection
Screw terminal
- Connector (field)
D-SUB-9
- Connector (control)
Screw terminal
- Type
SUB-D PROFIBUS-DP, IP20
- Weight
84 g
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. temperature
+90 °C
- Min. temperature
-30 °C
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Features
+ shielding connector
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258306 Transfer module PROFIBUS-DP T-piece RS PB-DP T SUB-D Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258306 Transfer module PROFIBUS-DP T-piece RS PB-DP T SUB-D Weidmüller Content: 1 pc(s)
Description
Transfer module PROFIBUS-DP T-piece. IP20 T-piece PROFIBUS-DP. This distributor for PROFIBUS-DP offers the user a comfortable connection in the control cabinet. It can be mounted on the mounting rails TS 32/35 and combines the standardized PROFIBUS-DP lines. Next to the Connect to spur lines can be connected. Please note, the spur lines as short as possible. The article 8788580000 also enables the connection of analysis/programming devices via a 9-pin Sub-D socket. T-piece functions. Good shielding contact, a lot of space for connecting the bus cable. Rail mounting TS 32/35.
