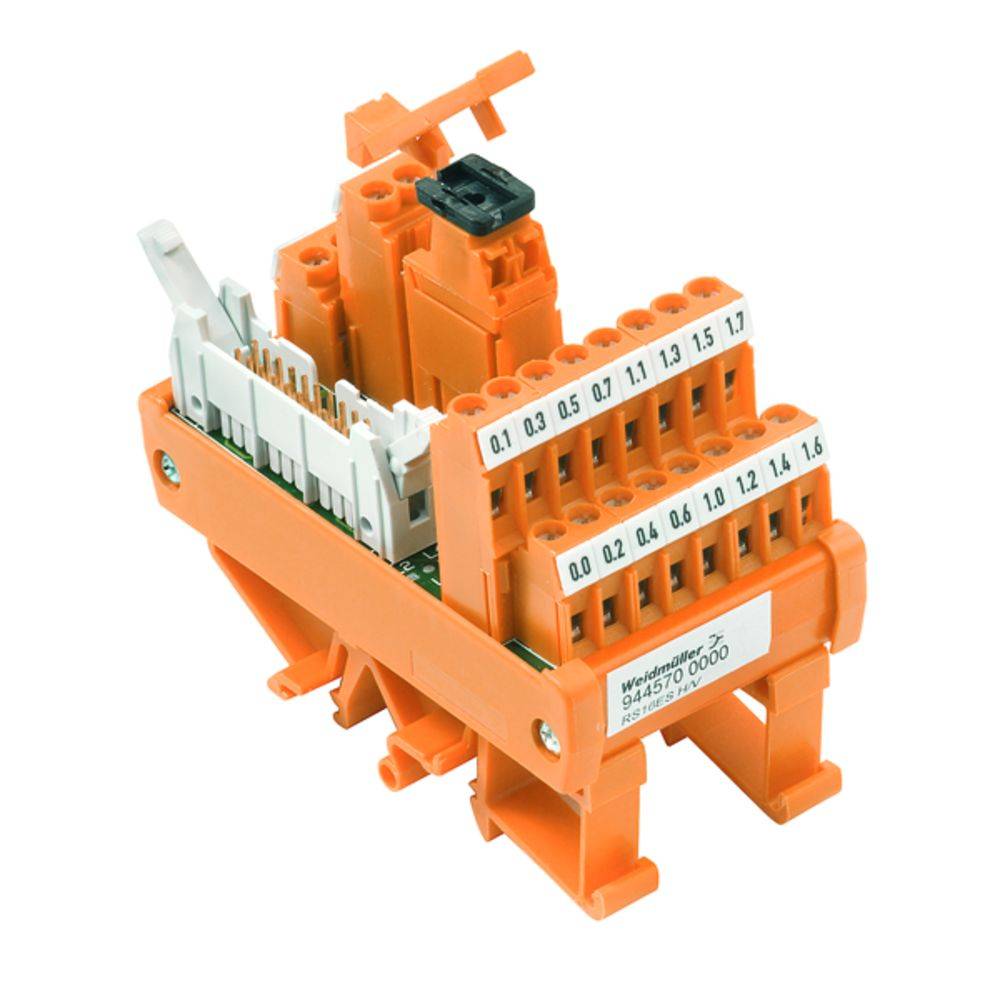

Transfer module RS 16IO 1W H S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
20
AWG
AWG 26 - AWG 12
Stripping length (max.)
6 mm
Datasheet (PDF)
Highlights & Details
Transfer module
- RS 16 IO 1W H S
Technical specifications
- Rated insulation voltage< 50 V AC
- Over voltage category III
- Pollution level: 2
- Pulse voltage testing (1.2/50µs): 0.8 kV
- Dielectric strength test: 0.35 kVAC
- Core cross section (min.) AWG 26
- Conductor cross-section max. AWG: AWG 12
- Tightening torque, min.: 0.5 Nm
- Tightening torque, max. 0.6 Nm
- LED status indicator per channel: No.
- Separation per channel: No.
- Type of test point: No.
- Wiring system: 1-wire
- OPERATING VOLTAGE 25 V AC / 50 V DC
- Maximum current per channel: 1 A.
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
20
AWG 26 - AWG 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 46 x 87 x 72 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Type
Interface, RS, 1-wire, screw connection
- Operating current
2 A
- Weight
139 g
- Content
1 pc(s)
- Number of pins
20
- Width
87 mm
- Height
72 mm
- Length
46 mm
- RoHS-compliant
Yes
- Series
RS
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Features
+ LED
for SPS
- Type
RS 16 IO 1W H S
DIN rail (top hat rail) 35 mm
46
87 mm
72 mm
1 A
50 V
20
Screw connection
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259630 Transfer module RS 16IO 1W H S Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 259630 Transfer module RS 16IO 1W H S Weidmüller Content: 1 pc(s)
Description
Transfer module. Interface, RS, 1-wire, screw connection. The direct digital input/output interfaces are equipped with flat cable connectors, in order to enable a simple connection.
