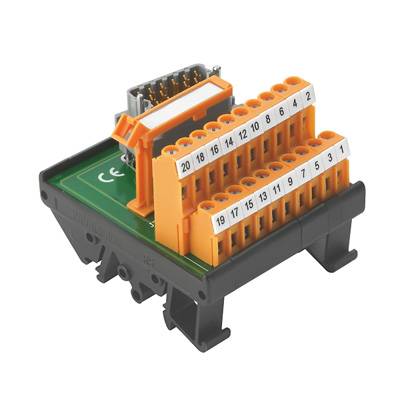

Transfer module RS ELCO 56/32RM S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
56
Connection
ELCO connector
AWG
AWG 12
Datasheet (PDF)
Highlights & Details
Transfer module
- RS ELCO 56/32 RM S
Technical specifications
- Nominal current per connection 1.5 A.
- Rated insulation voltage 150 V AC < 150 V AC
- Overvoltage category II
- Pollution level: 2
- Pulse voltage testing (1.2/50µs): 2.5 kV
- Dielectric strength test: 0.8 kVAC
- Core cross section (min.) AWG 26
- Conductor cross-section max. AWG: AWG 12
- Tightening torque, min.: 0.5 Nm
- Tightening torque, max. 0.6 Nm
- RATED VOLTAGE 150 V AC / 200 V DC
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
56
- Connection
ELCO connector
AWG 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 95 x 70 x 60 mm
- Connector (field)
Screws
- Connector (control)
ELCO connector
- Type
Interface, RS ELCO, ELCO connector, 32, LP2N 5.08mm
- Operating current
48 A
- Weight
175 g
- Content
1 pc(s)
- Suitable for
ELCO connector
- Number of pins
56
- Width
70 mm
- Height
60 mm
- Length
95 mm
- RoHS-compliant
Yes
- Series
RS ELCO
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Type
RS ELCO 56/32 RM S
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200725 Transfer module RS ELCO 56/32RM S Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 200725 Transfer module RS ELCO 56/32RM S Weidmüller Content: 1 pc(s)
Description
Transfer module. ELCO contact inserts are used in electricity power plants, refineries and various process applications, in which a solid and reliable signal transmission, as well as #96 density are required. The main feature of the ELCO connector is to be reliable connection system and its high signal capacity in a single plug connector. The offer of RS ELCO interfaces and pre-assembled cables PAC ELCO is specially designed for the solution of these requirements..
