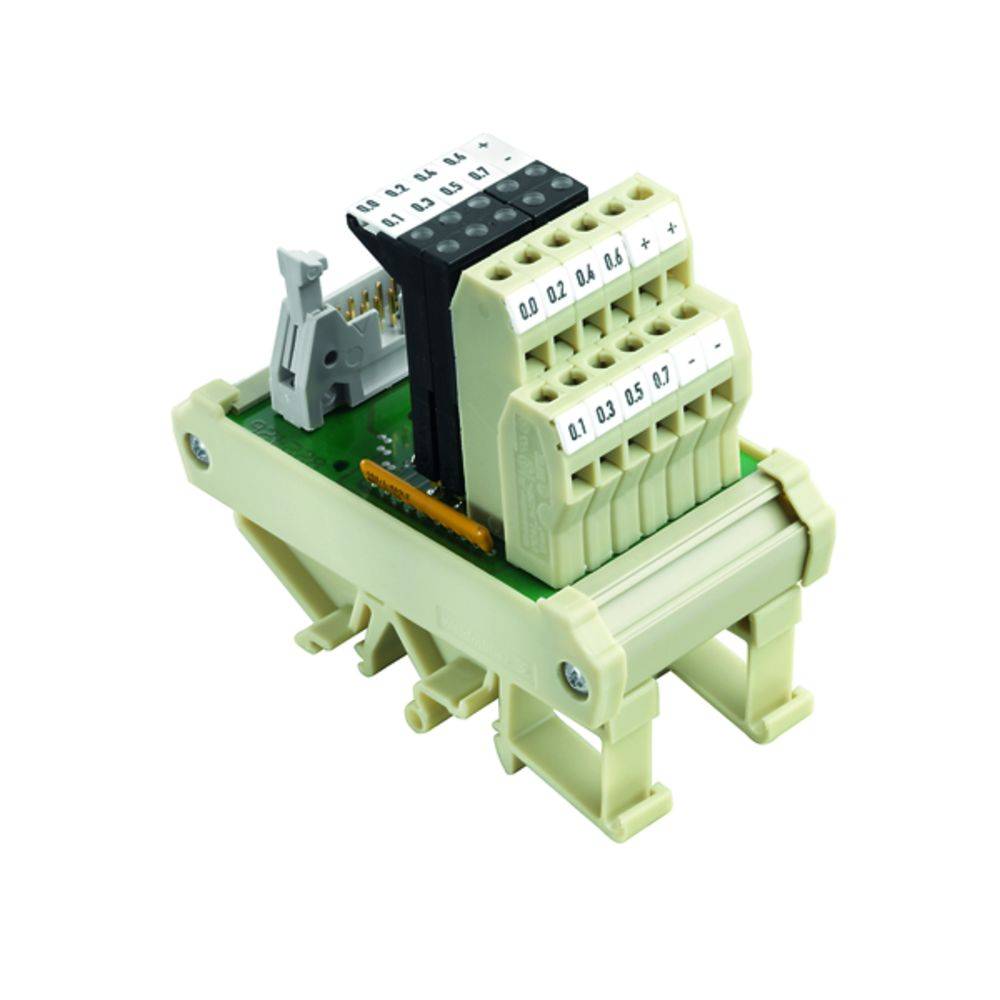

Transfer module RS F10 I/O8 LD LPK2 Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
10
Stripping length (max.)
6 mm
Dim
(L x W x H) 40 x 87 x 80 mm
Datasheet (PDF)
Highlights & Details
Transfer module
- RS F10 I/O8LD LPK 2
Our service for you
Technical specifications
- Rated insulation voltage: ≤ 50 V DC
- Overvoltage category: III
- Pollution degree: 2
- Penetrating test: 0.35 kVAC
- conductor cross-section min. AWG: AWG 26
- conductor cross-section max. AWG: AWG 12
- Torque, min.: 0.5 Nm
- Torque, max.: 0.6 Nm
- LED status indicator per channel: Yellow
- Wiring system: 1-wire
- maximum current per channel: 1 A.
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
10
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 40 x 87 x 80 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Type
Interface, RSF, 1-wire, screw connection
- Weight
123 g
- Content
1 pc(s)
- Number of pins
10
- Width
87 mm
- Height
80 mm
- Length
40 mm
- RoHS-compliant
Yes
- Series
RSF
- Max. temperature
+55 °C
- Min. temperature
0 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Features
+ LED
- Type
RS F10 I/O8LD LPK 2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 257944 Transfer module RS F10 I/O8 LD LPK2 Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 257944 Transfer module RS F10 I/O8 LD LPK2 Weidmüller Content: 1 pc(s)
Description
Transfer module. 1-wire, screw connection. Passive interface elements RS F40 or F10 for 32 or 8 RS signals that the efficient connection of peripherals (sensors and actuators) to the input/output modules of the SPS thanks to pre-fitted cable. The most important features are: Spring-loaded or screw connection technology. After Bytes grouped signals. 1-, 2- or 3-wire technology. Extremely compact modules in RS-profile 45 for mounting on standard mounting rail TS 35.
