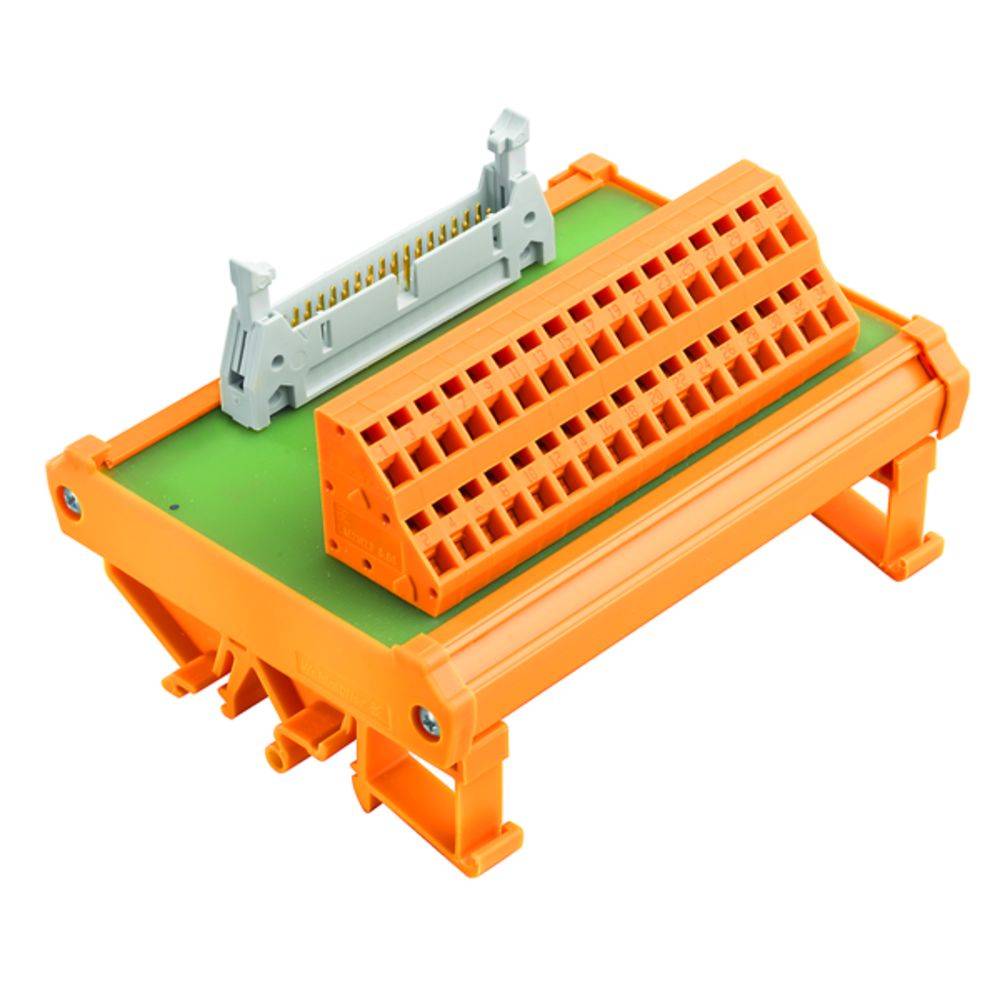

Transfer module RS F20 Z Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
20
Stripping length (max.)
7.5 mm
Dim
(L x W x H) 65 x 87 x 64 mm
Datasheet (PDF)
Highlights & Details
Transfer module
- RS F20Z
Technical specifications
- Nominal current per connection: 1 A
- Rated insulation voltage: 100 V
- Overvoltage category: II
- Pollution degree: 2
- Pulse voltage testing (1.2/50µs): 0.8 kV
- conductor cross-section min. AWG: AWG 24
- wire cross-section max. AWG: AWG 14
- rated voltage 60 V AC / 75 V DC
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
20
- Stripping length (max.)
7.5 mm
- Dim
(L x W x H) 65 x 87 x 64 mm
- Connector (field)
Pull spring
- Connector (control)
Connector
- Type
Interface, RSF, connector to IEC60603-13/DIN41651, 20-pin, tension spring connection
- Weight
121 g
- Content
1 pc(s)
- Number of pins
20
- Width
87 mm
- Height
64 mm
- Length
65 mm
- RoHS-compliant
Yes
- Series
RSF
- Max. temperature
+55 °C
- Min. temperature
0 °C
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
TS 35 socket
- Type
RS F20Z
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258101 Transfer module RS F20 Z Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258101 Transfer module RS F20 Z Weidmüller Content: 1 pc(s)
Description
Transfer module. Interface connector according to IEC 603-1/DIN 41651, RSF,, 20 poles, spring-cage connection. Passive interfaces for signal transmission of a with tension clamp technology equipped flat cable connector according to IEC 603-1/DIN 41651. The most important features are: group with 10- to 64-pin connectors. Electrical connection on a one-to-one between control and panel connections. Extremely compact modules for mounting on standard mounting rail TS 35 or TS 32. Long locking hooks.
