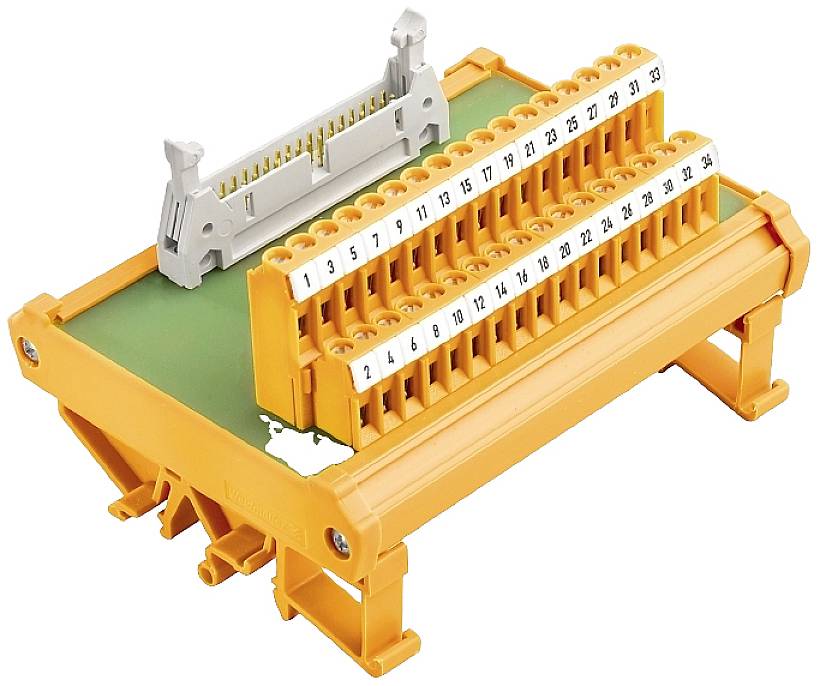

Transfer module RS F34 LP2N 5/34 Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
34
Mounting type
DIN rail TH35
AWG
26 - 12
Stripping length (max.)
6 mm
Technical specifications
- Product type
Transfer module
- Total no. of pins
34
- Mounting type
DIN rail TH35
26 - 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 70 x 110 x 87 mm
- Connector (field)
Screws
- Content
1 pc(s)
- Number of pins
34
- Width
110 mm
- Height
87 mm
- Length
70 mm
- RoHS-compliant
Yes
- Max. temperature
+55 °C
- Min. temperature
0 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2543996 Transfer module RS F34 LP2N 5/34 Weidmüller Content: 1 pc(s)
