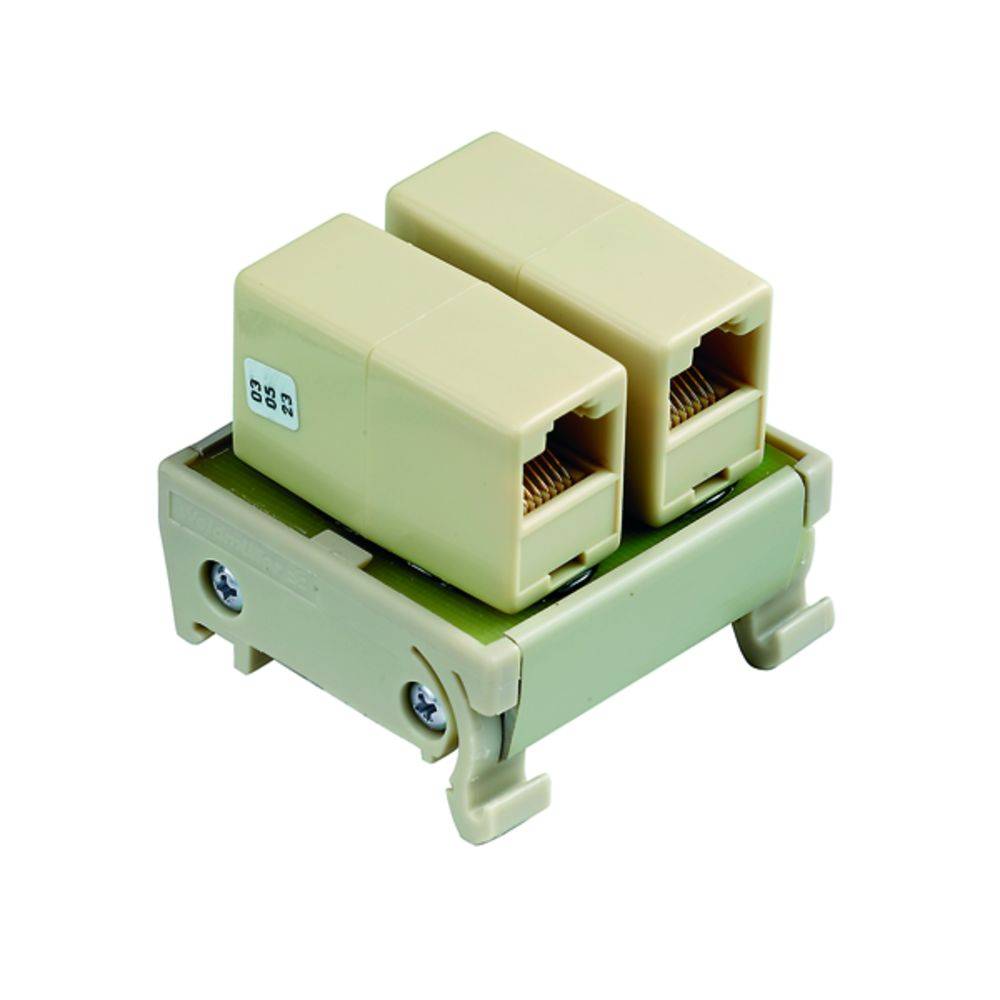

Transfer module RS RJ45 2WAY Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
8
Connection
RJ45
Dim
(L x W x H) 46.8 x 45 x 44.2 mm
Datasheet (PDF)
Highlights & Details
Transfer module
- RS RJ45 2WAY
Technical specifications
- Nominal current per connection: 1 A.
- Rated insulation voltage< 50 V AC
- Over voltage category III
- Pollution level: 2
- Pulse voltage testing (1.2/50µs): 0.8 kV
- Dielectric strength test: 0.35 kVAC
- Rated voltage: 50 V
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
8
- Connection
RJ45
- Dim
(L x W x H) 46.8 x 45 x 44.2 mm
- Connector (field)
RJ45
- Connector (control)
RJ45
- Type
Interface, RS RJ45, 2 x RJ45 connectors
- Operating current
1.5 A
- Weight
60 g
- Content
1 pc(s)
- Number of pins
8
- Width
45 mm
- Height
44.2 mm
- Length
46.8 mm
- RoHS-compliant
Yes
- Series
RS RJ45
- Max. temperature
+55 °C
- Min. temperature
0 °C
- Features
TS 35 socket
- Type
RS RJ45 2WAY
DIN rail (top hat rail) 35 mm
47
45 mm
44 mm
1 A
8
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258140 Transfer module RS RJ45 2WAY Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258140 Transfer module RS RJ45 2WAY Weidmüller Content: 1 pc(s)
Description
Transfer module. Interface, RS RJ45, 2 x RJ45 connector. The offer of RS RJ45 interface provides a convenient and simple alternative to connect a modem, router, PC's or other communication tools with the existing components inside the control cabinet. You can be used to the shielded 8-pin contact inserts RJ-45 to a screw connection to adjust or 2 data cables to connect. The modules can be attached on standard mounting rails TS32 and TS35..
