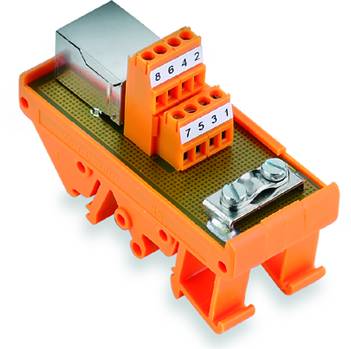

Transfer module RS RJ45 Weidmüller Content: 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
8
Connection
RJ45
Stripping length (max.)
5 mm
Datasheet (PDF)
Highlights & Details
Transfer module
Our service for you
Technical specifications
- Nominal current per connection: 1 A.
- Rated insulation voltage< 50 V AC
- Over voltage category III
- Pollution level: 2
- Pulse voltage testing (1.2/50µs): 0.8 kV
- Dielectric strength test: 0.35 kVAC
- Core cross section (min.) AWG 28
- Conductor cross-section max. AWG: AWG 14
- Tightening torque, min.: 0.2 Nm
- Tightening torque, max. 0.25 Nm
- Rated voltage: 50 V
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
8
- Connection
RJ45
- Stripping length (max.)
5 mm
- Dim
(L x W x H) 30 x 70 x 48 mm
- Connector (field)
Screws
- Connector (control)
RJ45
- Type
Interface, RS RJ45, RJ45 connector, 8-pin, screw connection
- Operating current
1.5 A
- Weight
33.68 g
- Industrial packaging
Yes
- Content
10 pc(s)
- Number of pins
8
- Width
70 mm
- Height
48 mm
- Length
30 mm
- RoHS-compliant
Yes
- Series
RS RJ45
- Max. temperature
+55 °C
- Min. temperature
0 °C
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Features
+ PG
- Type
RS RJ45
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391460 Transfer module RS RJ45 Weidmüller Content: 10 pc(s)
User & Safety Instructions
User & Safety Instructions 391460 Transfer module RS RJ45 Weidmüller Content: 10 pc(s)
Description
Transfer module. Interface, RS RJ45, RJ45 connector, 8-pin, screw connection. The offer of RS RJ45 interface provides a convenient and simple alternative to connect a modem, router, PC's or other communication tools with the existing components inside the control cabinet. You can be used to the shielded 8-pin contact inserts RJ-45 to a screw connection to adjust or 2 data cables to connect. The modules can be attached on standard mounting rails TS32 and TS35..
