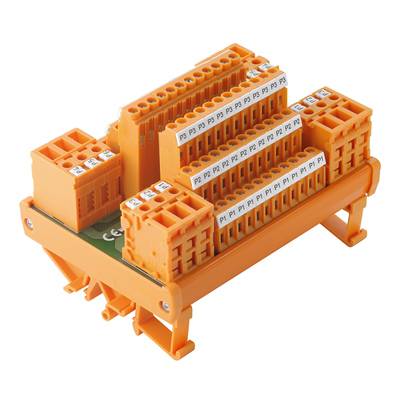

Transfer module RS VERT 6P 12X6 Z Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Stripping length (max.)
13 mm
Min. stripping length
7.5 mm
Dim
(L x W x H) 122 x 87 x 75 mm
Connector (field)
Pull spring
Datasheet (PDF)
Highlights & Details
Transfer module
- RS VERT 6P 12X6Z
Technical specifications
- Rated insulation voltage< 300 V AC
- Over voltage category III
- Pollution level: 2
- Pulse voltage testing (1.2/50µs): 4 kV
- Dielectric strength test: 1.2 kVAC
- Core cross section (min.) AWG 24
- Conductor cross-section max. AWG: AWG 14
- Tightening torque, min.: 0.5 Nm
- Tightening torque, max. 0.6 Nm
- Product type
Transfer module
- Stripping length (max.)
13 mm
- Min. stripping length
7.5 mm
- Dim
(L x W x H) 122 x 87 x 75 mm
- Connector (field)
Pull spring
- Connector (control)
Screws
- Type
Interface, RS VERT, 6 P, tension spring connection
- Operating current
120 A
- Weight
300 g
- Content
1 pc(s)
- Width
87 mm
- Height
75 mm
- Length
122 mm
- RoHS-compliant
Yes
- Series
RS VERT
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
+ 6 bonding bars
- Type
RS VERT 6P 12X6Z
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200776 Transfer module RS VERT 6P 12X6 Z Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 200776 Transfer module RS VERT 6P 12X6 Z Weidmüller Content: 1 pc(s)
Description
Transfer module. Interface, RS VERT, 6P, spring-cage connection. Distributor module with 6 voltage potential (P1, P2, P3, P4, P5, P6) in 12P 1.12 P 2.12 P3, P5 and 12P6 12P 4.12.
