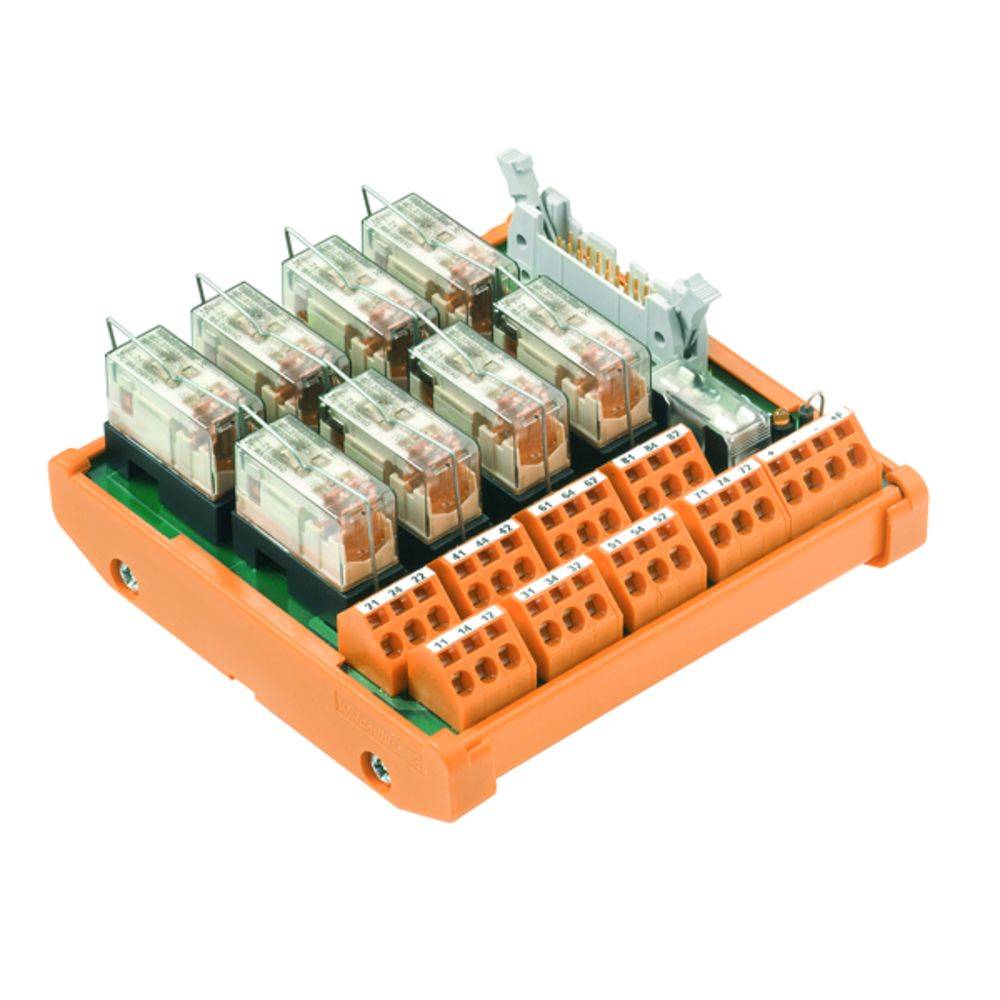

Transfer module RSM-8 C 1CO Z Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
20
Dim
(L x W x H) 110 x 109 x 68 mm
Connector (control)
Connector
Datasheet (PDF)
Highlights & Details
Transfer module
- RSM-8C1 CO Z
Technical specifications
- Contamination level: 2
- pulse voltage testing (1.2/50µs): 6 kV
- dielectric strength test: 1.2 kVAC
- conductor cross-section min. AWG: AWG 26
- conductor cross-section max. AWG: AWG 14
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
20
- Dim
(L x W x H) 110 x 109 x 68 mm
- Connector (control)
Connector
- Type
Interface, RSM, 8 compact, RCL, tension spring connection
- Weight
360 g
- Content
1 pc(s)
- Number of pins
20
- Width
109 mm
- Height
68 mm
- Length
110 mm
- RoHS-compliant
Yes
- Series
RSM
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Features
+ illuminated display
- Type
RSM-8C1 CO Z
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259650 Transfer module RSM-8 C 1CO Z Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 259650 Transfer module RSM-8 C 1CO Z Weidmüller Content: 1 pc(s)
Description
Transfer module. Interface, RSM, 8 compact, RCL, spring-cage connection. Digital output interface per relay for the electrical signal transmission between the PLC and the field. Electrical insulation by use of a pluggable relay. Integrated LED status indicator. Screw-type or spring-cage connection. Additional features: upstream fuse or switch disconnector. 2 versions available: compact (RSS relay) or Standard (Relay RCL).
