Trelleborg MH-24 F 125-1 LIGHT GREY UL94 V-0 IP65 | TPE | Screw Grommet with cable feeder Terminal Ø (max.) 5 mm TPE Gre
EAN:
Part number:
Item no:
Product type
Grommet
Features
with cable feeder
Material
TPE
Clamp Ø
1.5 mm
Terminal Ø (max.)
5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Highlights & Details

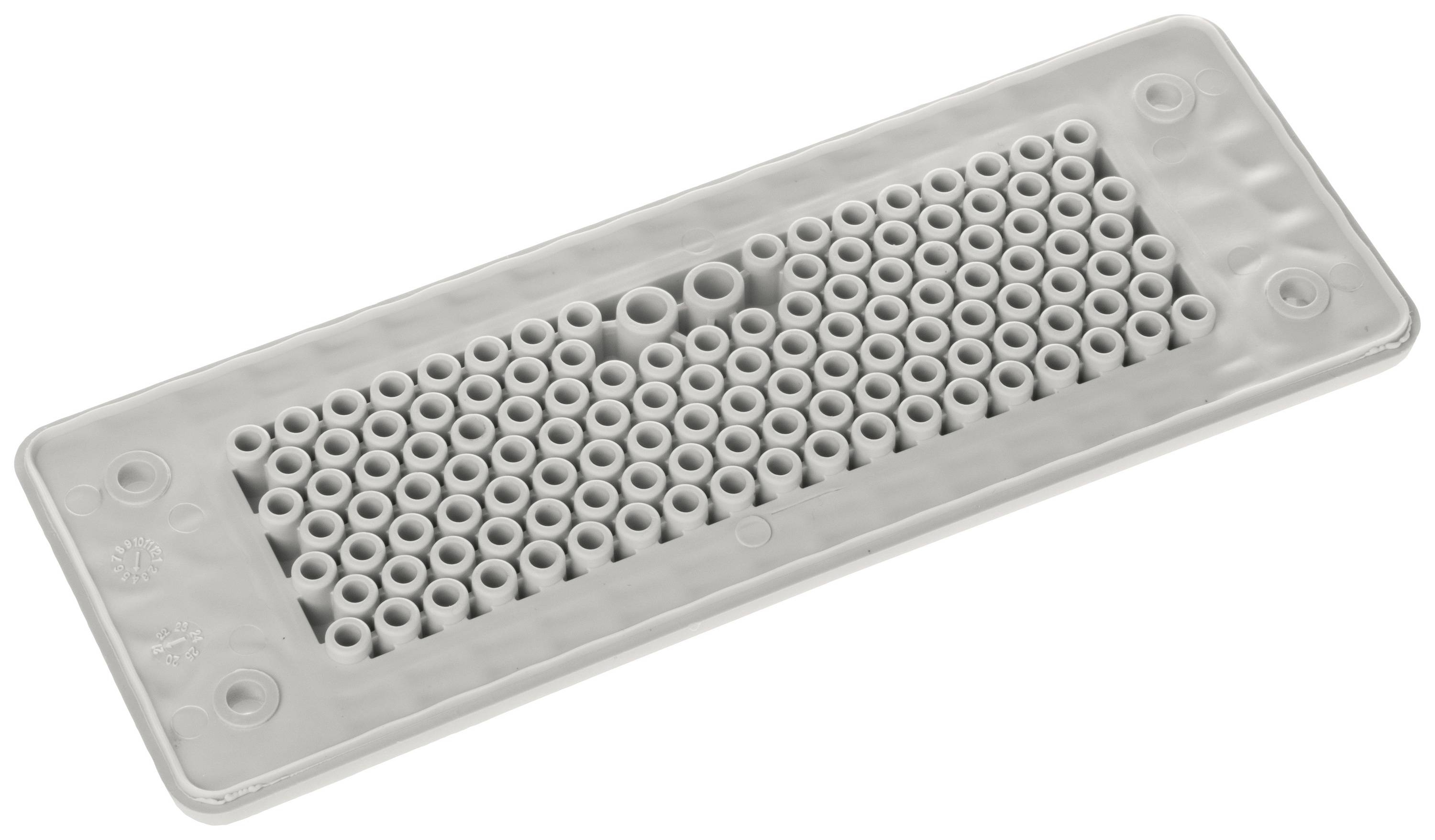

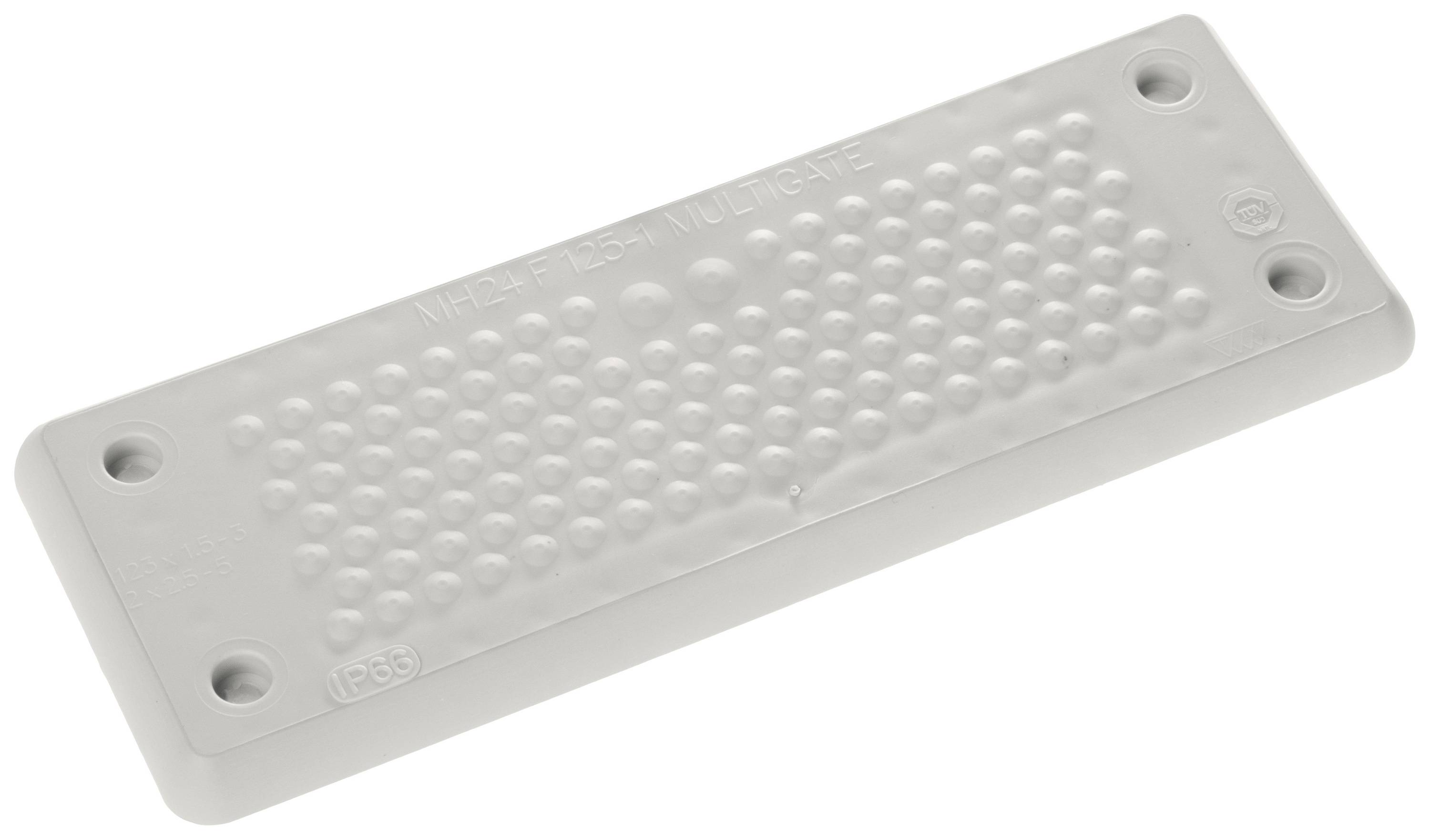

Cable grommet plate MH-24 F 125-1, suitable for up to 125 cables
- Dimensions: 154x56x11mmGrommets: 123x1.5-3mm, 2x2.5-5mmSeries: SDTColour: grey.Material: TPE.Temperature range: -40…+100°C.Protection class IP66Fire class UL94-V0RoHS compliant: YES
- This text is machine translated.
Our service for you
Technical specifications
- Number of cable entries: 125
- Product type
Grommet
- Features
with cable feeder
- Factory colour
Grey
- Material
TPE
- Length
154 mm
- Width
56 mm
- Height
11 mm
- Dim
(L x W x H) 154 x 56 x 11 mm
- Clamp Ø
1.5 mm
- Terminal Ø (max.)
5 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP66
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
107562B
- Type
MH-24 F 125-1 LIGHT GREY UL94 V-0 IP65 | TPE | Screw
- RoHS-compliant
Yes
- Material properties
halogen-free
Documents & Downloads
Datasheet
Datasheet 2637288 Trelleborg MH-24 F 125-1 LIGHT GREY UL94 V-0 IP65 | TPE | Screw Grommet with cable feeder Terminal Ø (max.) 5 mm TPE Gre
User & Safety Instructions
User & Safety Instructions 2637288 Trelleborg MH-24 F 125-1 LIGHT GREY UL94 V-0 IP65 | TPE | Screw Grommet with cable feeder Terminal Ø (max.) 5 mm TPE Gre
